Sensor-operated mains-fed flush valve for a single urinal: flushes 2 s after the user leaves, with integral DC pipe interrupter (no cistern needed). Battery and mains supply both included; 0.5–6 bar.
€301.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

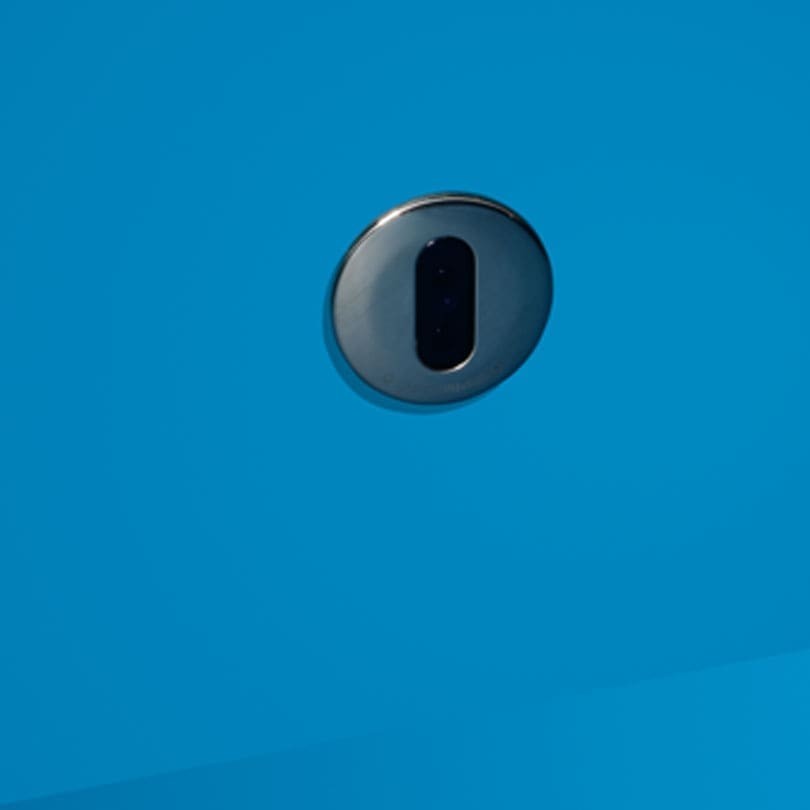

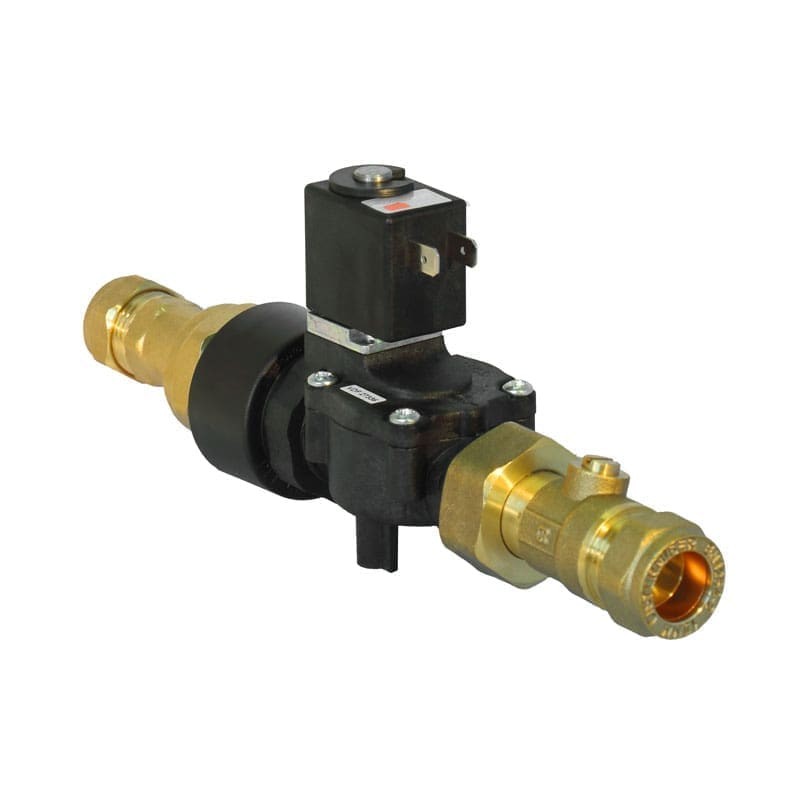

Direct Flush Discreet flushes each urinal individually straight from the mains cold supply, so no auto-flush cistern is needed. A small infrared sensor (48 × 48 mm) above the bowl detects the user and flushes two seconds after they leave; if someone is detected during a flush it stops to avoid splashing. After 12 hours without use it runs a hygiene flush. An integral DC pipe interrupter gives fluid category 5 backflow protection without extra check valves. The valve (41 × 200 × 82 mm) is concealed behind the panel or in the wall cavity.
Rear access to the cavity is needed for servicing; where there is none, the Accessible (DFA) version is the alternative. The supply must be 0.5 to 6 bar, the connection is 1/2″ BSP (15 mm) and the unit runs on four AA batteries (about 2 years) or a 6 V DC mains adaptor on a 1 A fused spur – both are included. Flush time (7 s default) and sensor range are adjustable; IP65.
The figures on this page are taken from the manufacturer’s own documentation and product data; if anything differs, the manufacturer’s documentation prevails. The manufacturer gives a 1-year parts guarantee from date of manufacture (3 years when registered after commissioning), which applies in addition to your statutory consumer rights.
| Brand | Cistermiser |
|---|---|
| Model | Direct Flush Discreet |
| MPN / Manufacturer code | DFD |
| EAN / GTIN | 5014308061453 |
| Finish / Colour | Polished stainless steel sensor |
| Product type | Infrared direct flush valve |
| Application | Urinal / WC flushing |
| Operation | Infrared sensor |
| Valve state | Normally closed |
| Max water pressure | 6 bar |
| Min water pressure | 0.5 bar |
| Detection range | 0.5 m |
| Connection size | 1/2" BSP (15 mm) |
| Connection type | Compression |
| Power source | Mains with battery back-up |
| Voltage | 6 V DC (mains adaptor) or 4 × AA |
| Power consumption | 2 W |
| Battery type | 4 × AA alkaline (LR6) |
| Width | 41 mm |
| Height | 200 mm |
| Depth | 82 mm |
| Installation type | Concealed in wall |
| Mounting notes | Valve behind panel/in cavity with rear access; sensor above urinal bowl |

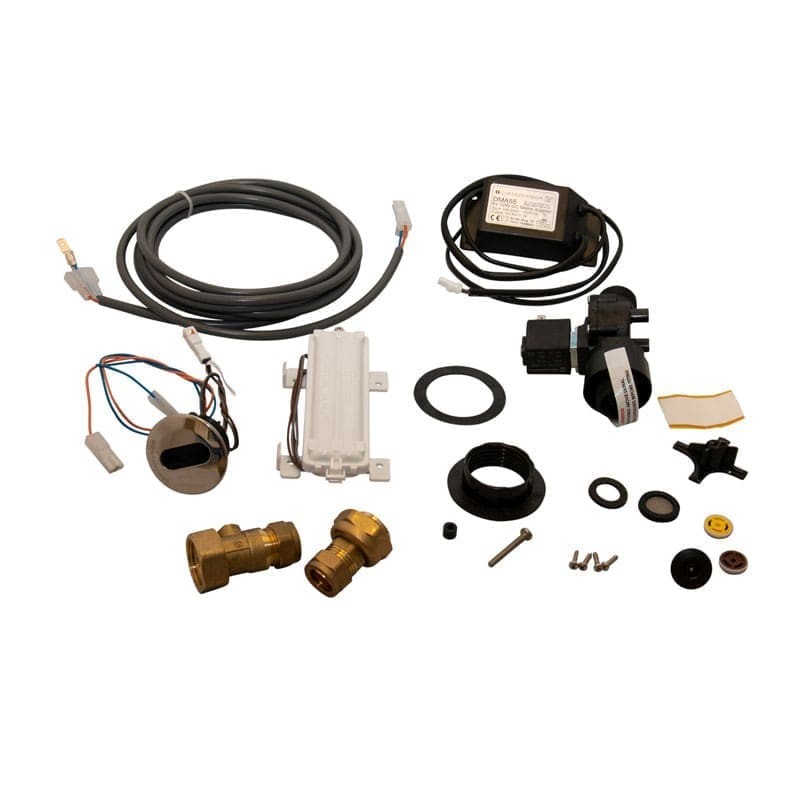

| Included in box | Sensor, valve unit, DC pipe interrupter with flow regulators, mains transformer, battery pack, 15 mm fittings incl. isolation valve, 3 m extension cable, filter |
| Approvals | Backflow class 5 type DC, IP65 |
| Guarantee | 1 year (3 years on registration) |
