28 mm compression 3-port mid-position diverter valve for Y-plan heating and hot water: brass body, replaceable powerhead, manual lever, 6 W, max 8.6 bar static and 0.6 bar differential.
€135.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

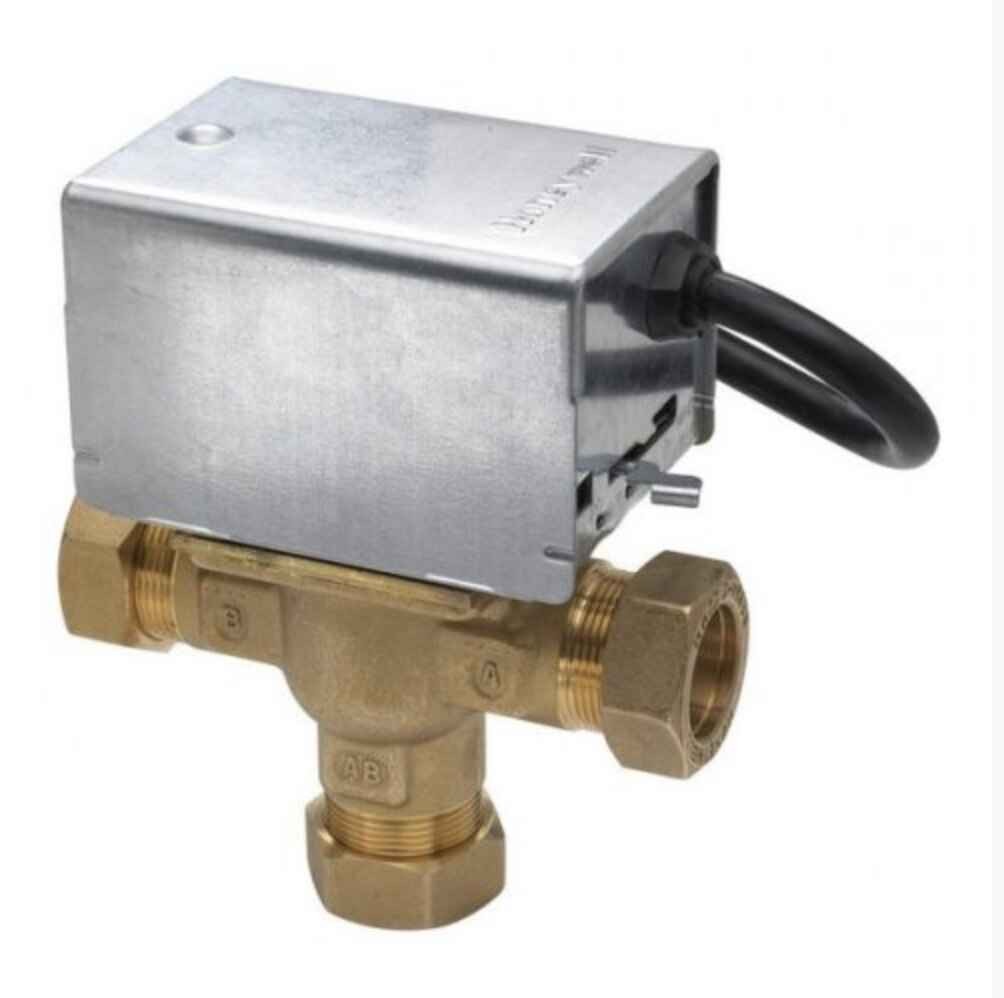

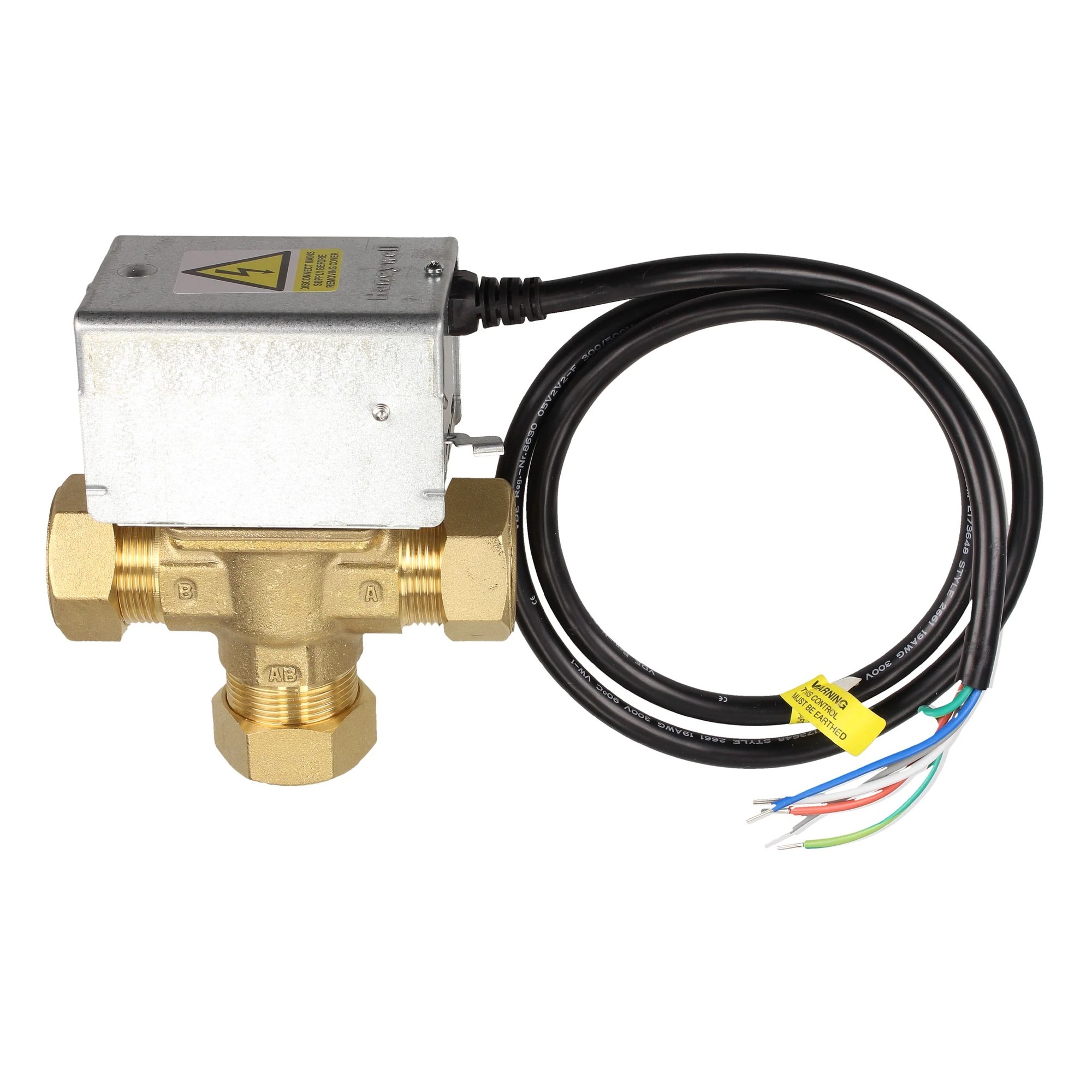

The Honeywell Home V4073A1088/U is a motorised three-port mid-position valve for fully pumped Y-plan systems with 28 mm primary pipework. It sends flow to the heating circuit (port A), the hot-water cylinder (port B) or both at once (mid position), under the control of a room and a cylinder thermostat, and its switch output runs the boiler and pump. On power failure the spring returns the valve to hot water. The brass-bodied valve has a replaceable powerhead and a manual lever for filling and draining.
It connects with 28 mm compression fittings, runs on 230 V AC 50 Hz at 6 W with a 2.2 A switch rating and opens in about 14 seconds. Maximum static pressure is 8.6 bar, differential pressure 0.6 bar and fluid temperature 5–88 °C; the valve measures 137 × 117 × 60 mm and weighs 1.3 kg. Mount it on horizontal or vertical pipe with the powerhead above the centreline and wire it through a Y-plan wiring centre; installation should be carried out by a competent heating engineer.
The figures on this page are taken from the manufacturer’s own documentation and product data; if anything differs, the manufacturer’s documentation prevails. The manufacturer gives a 1-year guarantee, which applies in addition to your statutory consumer rights.
| Brand | Honeywell Home |
|---|---|
| Model | V4073A 3-port mid-position valve |
| MPN / Manufacturer code | V4073A1088/U |
| EAN / GTIN | 5023220401315 |
| Product type | 3-port mid-position valve |
| Application | Central heating |
| Operation | Motorised, spring return |
| Number of ports / outlets | 3 |
| Body material | Brass |
| Max water pressure | 8.6 bar |
| Max differential pressure | 0.6 bar |
| Max fluid temperature | 88 °C |
| Connection size | 28 mm |
| Connection type | Compression |
| Power source | Mains 230 V |
| Voltage | 230 V |
| Power consumption | 6 W |
| Switch rating | 2.2 A |
| Width | 117 mm |
| Height | 137 mm |
| Depth | 60 mm |
| Weight | 1.3 kg |
| Installation type | Inline on pipework |
| Mounting notes | Horizontal or vertical pipe, powerhead above horizontal centreline; 8-core flying lead to Y-plan wiring centre |
| Guarantee | 1 year |
