Compact domestic ion-exchange softener with 20 l resin, volumetric (demand) control and counter-current regeneration; 1.8 m³/h nominal flow, 90 kg salt tank, 1″ bypass. For 2–8 bar.
€636.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

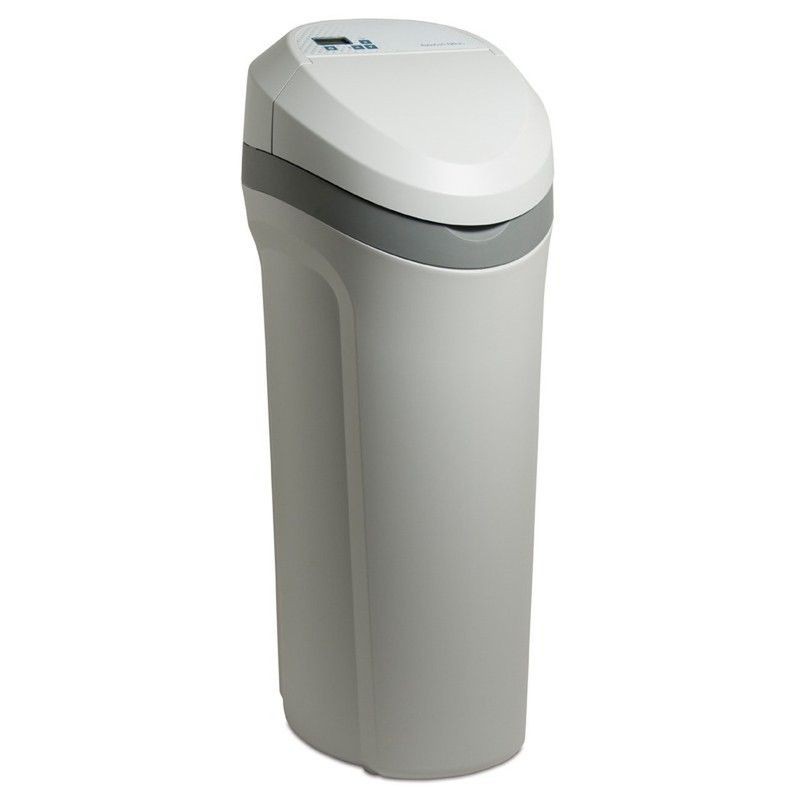

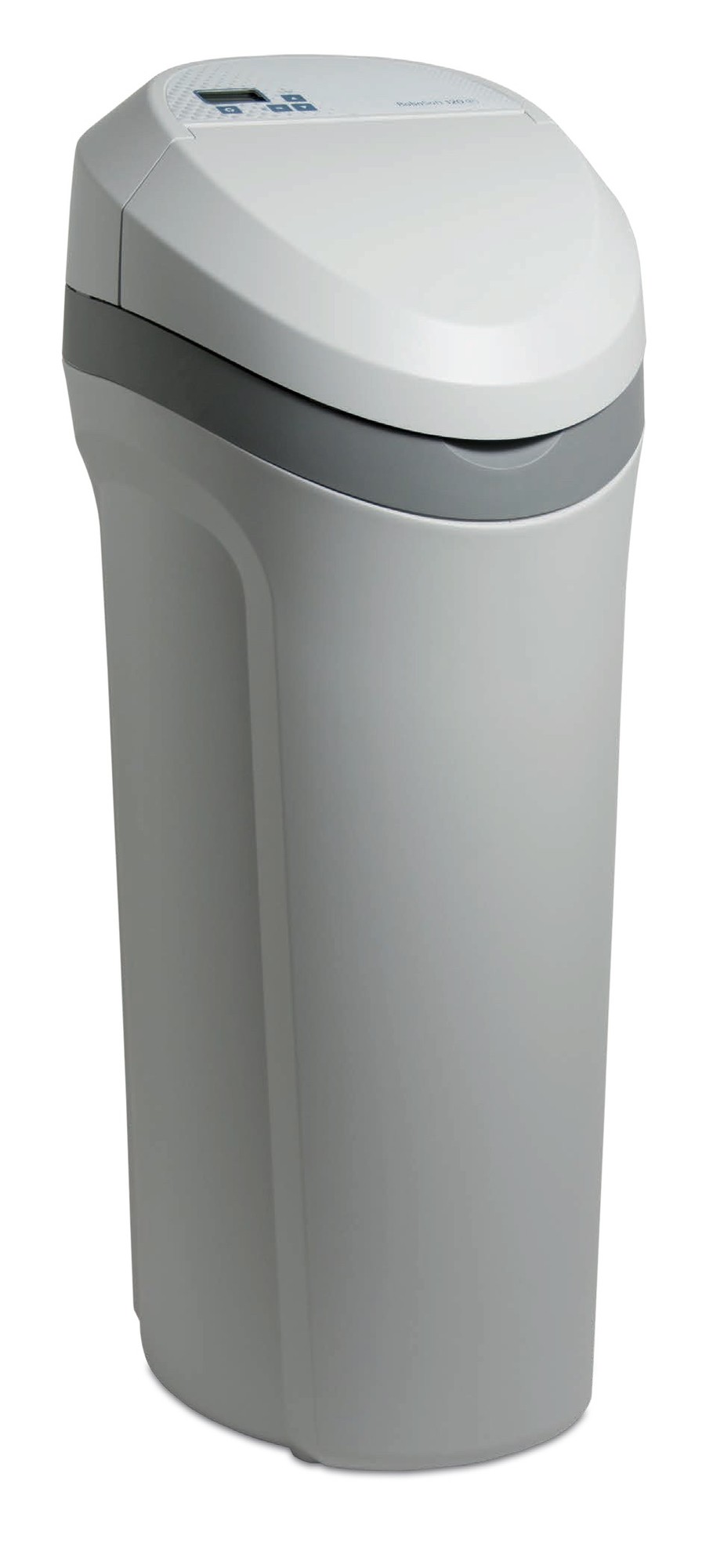

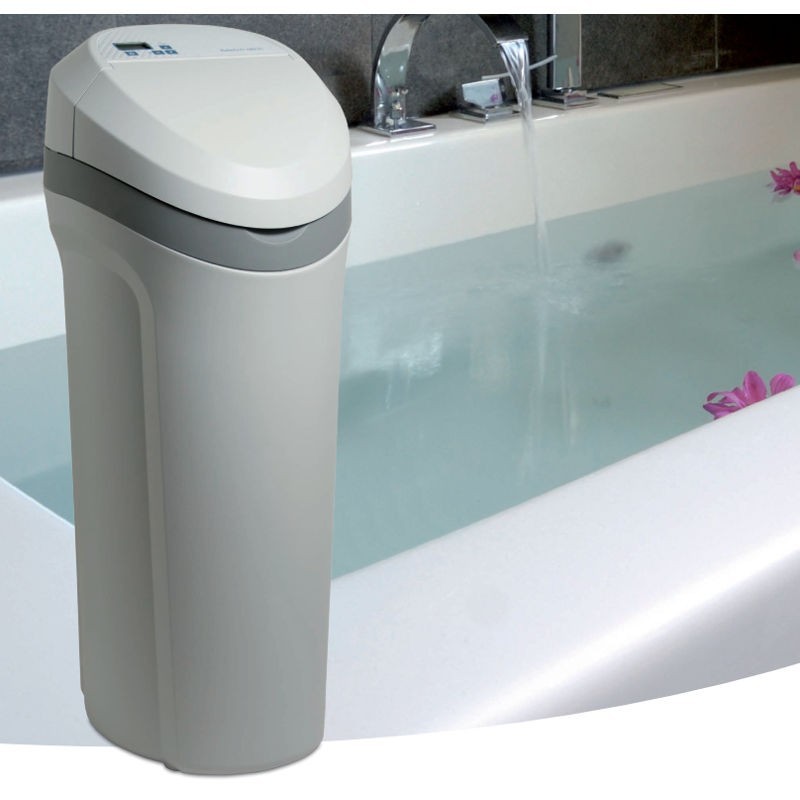

The ATH Robosoft 120e (RBS 120e) is a cabinet-type water softener for whole-house treatment. A fibreglass-reinforced polyester vessel holds 20 litres of food-grade resin; the electronic valve counts actual consumption and regenerates only when needed, using upflow (counter-current) brining and a choice of salt doses to keep salt and water use low. During regeneration the house is fed automatically through the bypass.
Install indoors on a level floor, out of sunlight and away from temperatures below 5 °C or above 50 °C, with a 1″ connection, a permanent 230 V socket for the 24 V transformer and a drain below the valve outlet. The supply must be 2–8 bar (pressure reducer above, booster below); a non-return valve is required if a water heater is present and a pre-filter is recommended. Use tablet salt only; each regeneration uses about 100 l of water. The cabinet is 1086 mm high, 438 mm wide and 524 mm deep.
If any figure on this page differs from the manufacturer’s documentation, the manufacturer’s documentation prevails. A 2-year guarantee applies for private use, in line with Spanish consumer law.
| Brand | ATH |
|---|---|
| Model | Robosoft 120e |
| MPN / Manufacturer code | 301526 |
| EAN / GTIN | 8435551042209 |
| Range / Series | Robosoft |
| Finish / Colour | White / grey |
| Product type | Water softener (ion exchange) |
| Installation type | Whole house (point of entry) |
| Treatment technology | Ion-exchange resin, volumetric control, counter-current regeneration |
| Material | Blow-moulded PE cabinet; fibreglass-reinforced polyester resin vessel |
| Resin volume | 20 l |
| Regeneration type | Metered (volumetric) |
| Regeneration flow | Counter-current (upflow) |
| Salt type | Tablet salt |
| Salt storage capacity | 90 kg |
| Water per regeneration | 100 l |
| Exchange capacity | 65 °f·m³ (1.0 kg salt) / 138 °f·m³ (3.0 kg) / 166 °f·m³ (5.1 kg) |
| Bypass valve included | Yes |
| Connection size | 1" |
| Max flow rate | 30 l/min (1.8 m³/h nominal; 2.3 m³/h max at 1 bar loss) |
| Min water pressure | 2.0 bar |
| Max water pressure | 8.0 bar |
| Water temperature range | 4–48 °C |
| Power supply | 230 V / 24 V transformer, 50–60 Hz |
| Power consumption | 13.5 W |
| Electricity required | Yes |
| Height | 1086 mm |
| Width | 438 mm |
| Depth | 524 mm |
| Included in box | Softener, 1" bypass valve with clips and spare O-rings, overflow elbow with clips, 220/24 V 10 VA transformer, lubricant |
| Approvals | R.D. 742/2013; EU directives 2006/42/CE, 2004/108/CE, 97/23/CE, 2009/125/CE |
| Guarantee | 2 years |
