All-in-one variable-speed pressure group: pump, inverter, sensors, 1 l vessel and display in one quiet housing. Keeps a set pressure of 1–5.5 bar, up to 80 l/min, self-priming to 8 m. For houses fed from a tank, cistern or well.
€515.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

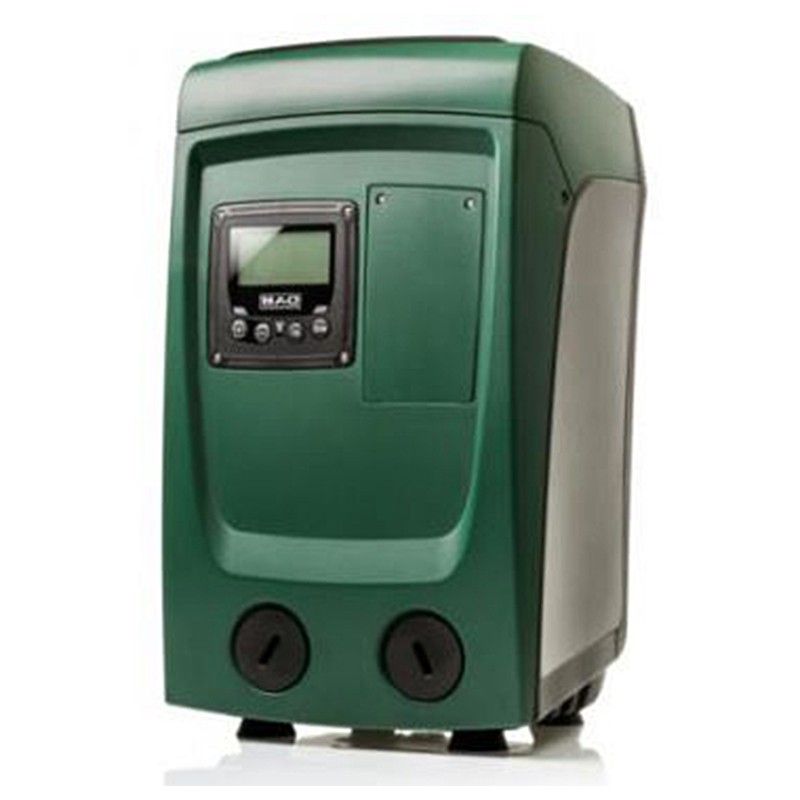

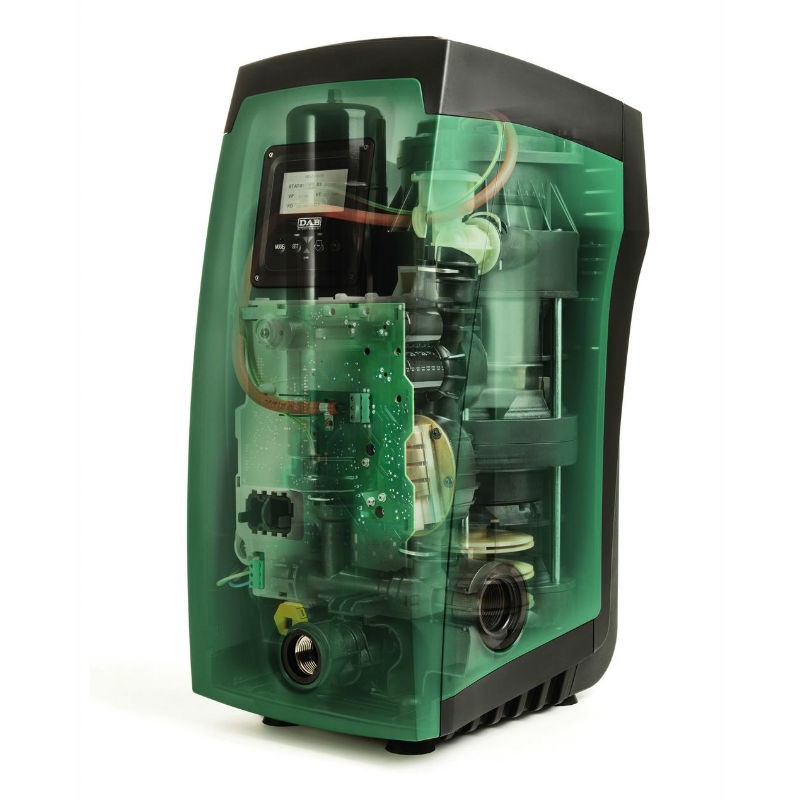

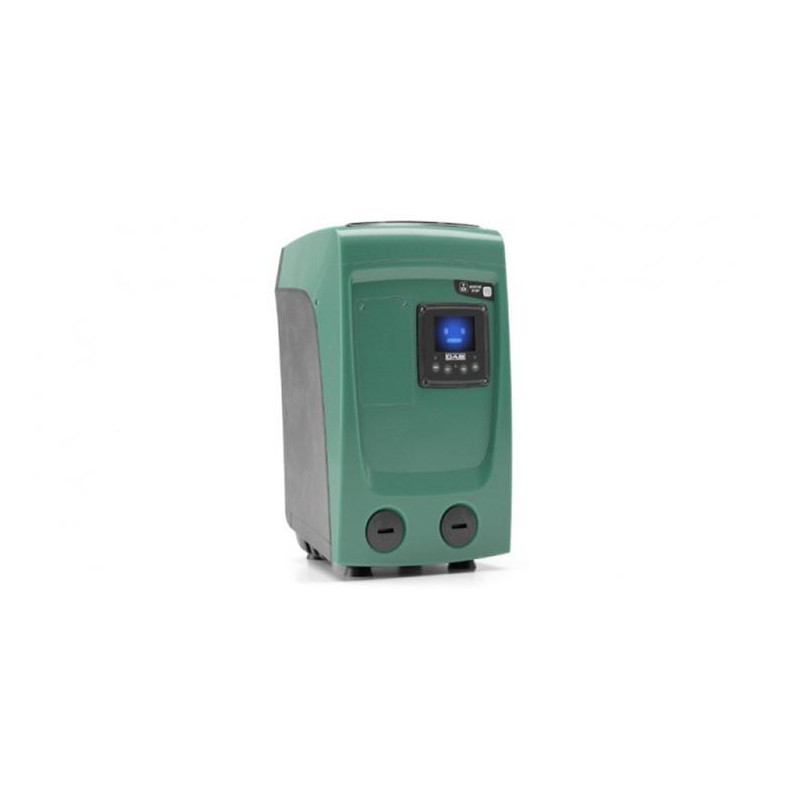

The DAB Esybox Mini 3 is an all-in-one electronic pressure booster: a self-priming three-impeller centrifugal pump, a variable-speed inverter, pressure and flow sensors, a non-return valve and a 1-litre expansion vessel are built into one compact, sound-damped housing with an orientable display. The inverter adjusts motor speed to demand so the set pressure (adjustable from 1 to 5.5 bar) stays constant as taps open and close, and the water-cooled motor keeps running noise low.
In Spain it is typically installed after a water tank or aljibe, on a well, or to raise the pressure of a weak supply where the water company allows it; check local rules, as many municipalities require a break tank instead of pumping directly from the network. Connections are 1″ G on suction and delivery (union kit sold separately); it can be laid horizontally, stood vertically or wall-mounted with the optional bracket. Provide a 230 V single-phase socket with earth, 30 mA RCD protection and capacity for 850 W / 4.8 A, and keep the pumped water clean and below 35 °C.
Technical data come from DAB documentation (Esybox Mini 3 technical sheet and data sheet), which prevails over this description. No manufacturer guarantee period is specified; the statutory guarantee applies.
| Brand | DAB |
|---|---|
| Model | Esybox Mini 3 |
| MPN / Manufacturer code | 60212597 |
| EAN / GTIN | 8059893316530 |
| Range / Series | Esybox Line (E.SYLINE) |
| Finish / Colour | Green / grey |
| Pump type | Inverter booster set |
| Impeller type | Multistage centrifugal |
| Head application | Negative / universal head |
| Pump control | Inverter / variable speed |
| Material | Sound-absorbing ABS hull; Noryl impellers and diffusers; stainless steel AISI 304 motor sleeve; brass 1" inserts |
| Suitable for | Domestic pressure boosting from a tank, cistern or well; up to about 3 floors / 2 bathrooms |
| Max head | 55 m |
| Max pressure | 5.5 bar |
| Max flow rate | 80 l/min |
| Duty point | Constant pressure settable 1–5.5 bar |
| Max suction lift | 8 m |
| Max liquid temperature | 35 °C (domestic use; 40 °C other uses) |
| Noise level | 45 dB(A) |
| Connection size | 1" G suction and delivery |
| Max water pressure | 7.5 bar |
| Pressure vessel volume | 1 l |
| Water supply type | Rainwater / well |
| Power consumption | 850 W |
| Voltage | 220–240 V, 50 Hz, single phase |
| Rated current | 4.8 A |
| IP rating | IPX4 |
| Height | 236 mm |
| Width | 263 mm |
| Depth | 439 mm |
| Weight | 14.6 kg |
| Installation type | Floor-standing |
| Dry-run protection | Yes |
| Included in box | Pump unit with integrated inverter, pressure/flow sensors, 1 l expansion vessel and non-return valve; 1.5 m power cable with plug |
| Approvals | WRAS, ACS, NF; CE |
