Grundfos UPS4 GO 25-65 130: compact high-efficiency circulator with power display, for replacing standard 130 mm heating pumps. 6.5 m head, 4–60 W, EEI ≤ 0.20, G 1½, 1.86 kg.
€138.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

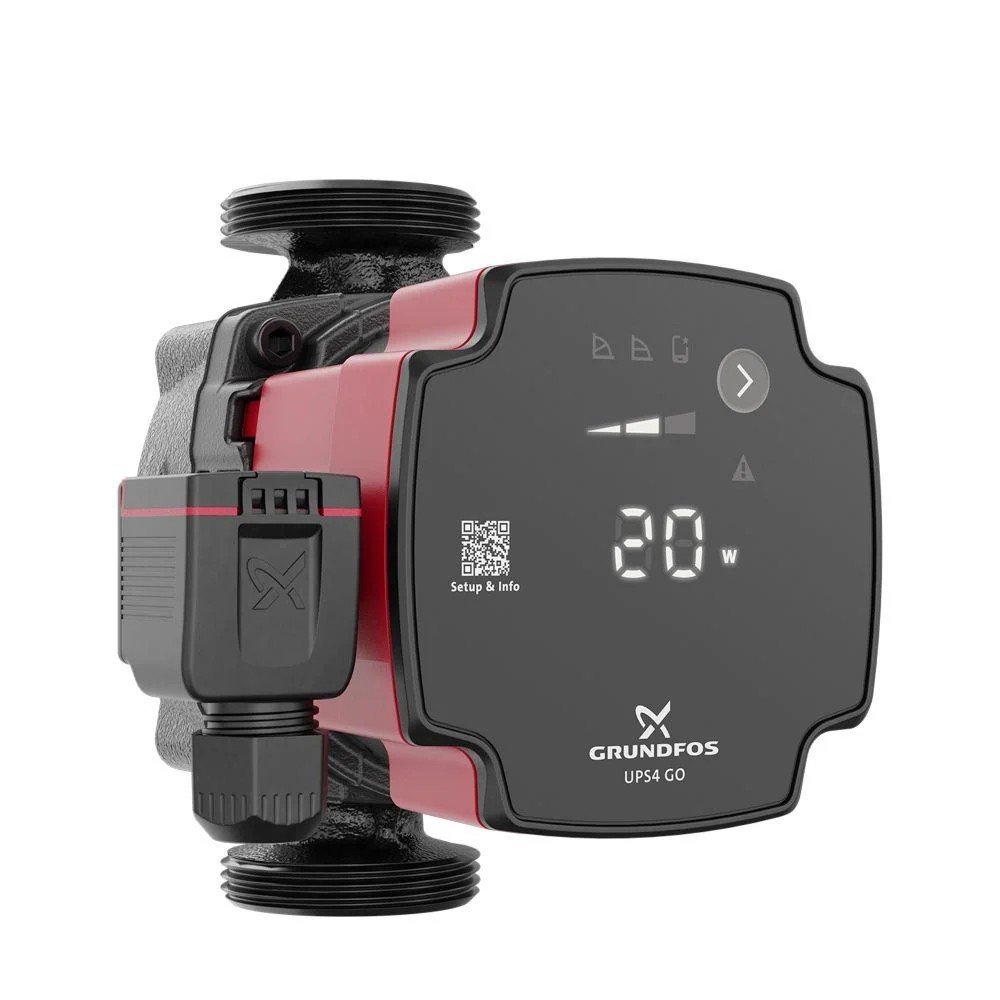

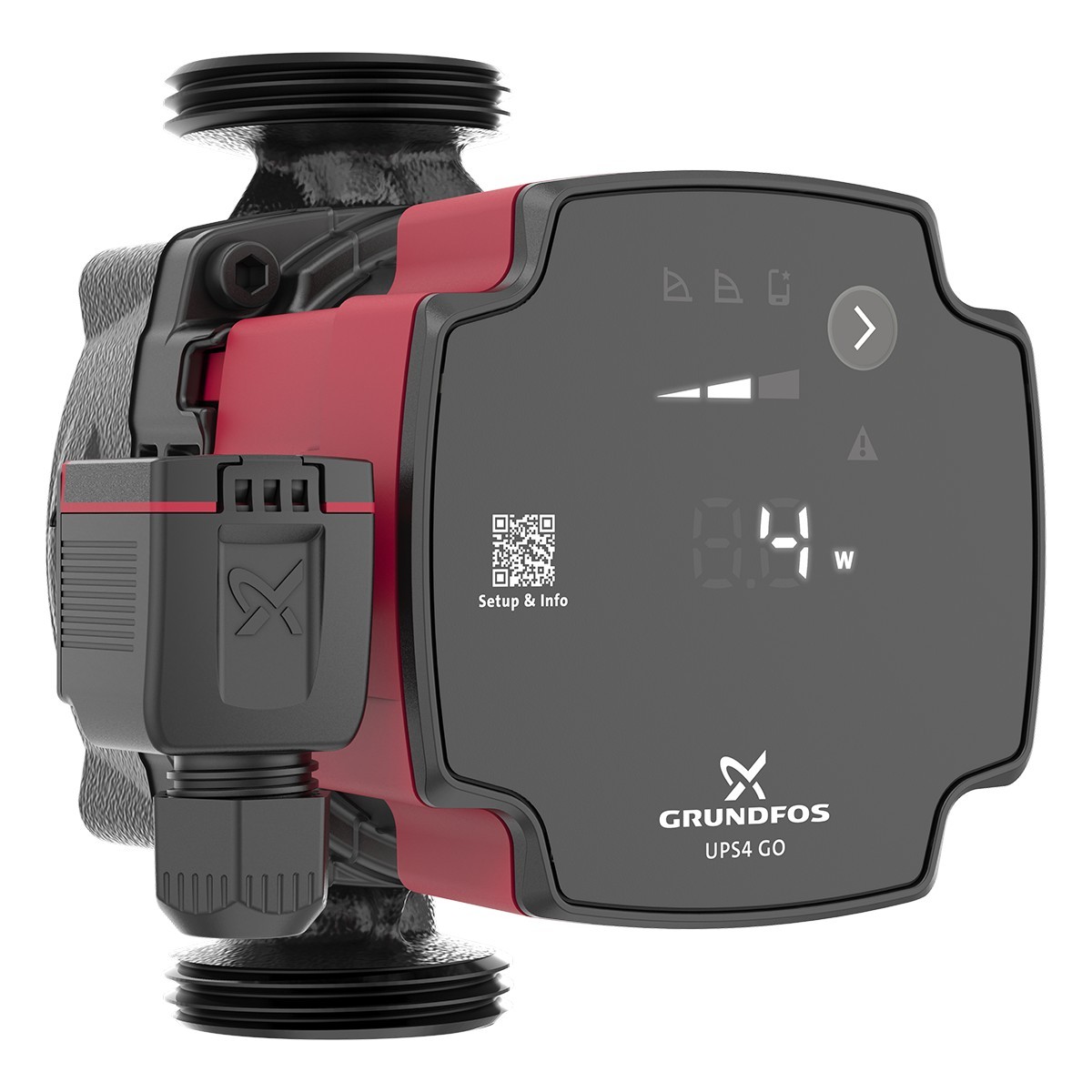

The UPS4 GO is Grundfos’s newest everyday replacement circulator for domestic heating. It pairs an ECM motor with a small display that shows the actual power draw, and offers proportional-pressure, constant-pressure and constant-curve settings plus an automatic mode. The electrocoated cast-iron housing has a 130 mm port-to-port length and G 1½ unions, matching the common 15-50, 15-60 and 25-60 sizes.
It suits radiator and underfloor circuits in houses with combi, system or regular boilers. Check that the old pump is 130 mm between ports, that the pump valves isolate properly, and that the terminal box can be turned to suit the pipe direction. The pump handles water and glycol mixtures from −10 to 110 °C and up to 10 bar; connect it with the tool-less plug to a fused 230 V supply and bleed the system after fitting.
Specifications come from the Grundfos product centre and datasheet, which prevail. A 5-year manufacturer guarantee is stated, in addition to the statutory guarantee.
| Brand | Grundfos |
|---|---|
| Model | UPS4 GO 25-65 130 |
| MPN / Manufacturer code | 93074168 |
| EAN / GTIN | 5715467403947 |
| Range / Series | UPS4 GO |
| Finish / Colour | Black / red |
| Pump type | Heating circulator |
| Impeller type | Canned rotor (wet rotor) |
| Pump control | Speed selector / constant curves |
| Material | Electrocoated cast iron housing (EN-GJL-150); composite impeller PES + 30% GF |
| Suitable for | Domestic heating systems; replacement for 130 mm 15-50/15-60/25-60 pumps |
| Max head | 6.5 m |
| Max pressure | 0.65 bar |
| Max flow rate | 65 l/min |
| Duty point | 3.76 m @ 2.43 m³/h |
| Max liquid temperature | 110 °C |
| Noise level | 25 dB(A) |
| Connection size | G 1 1/2 (union to 22 or 28 mm via pump valves) |

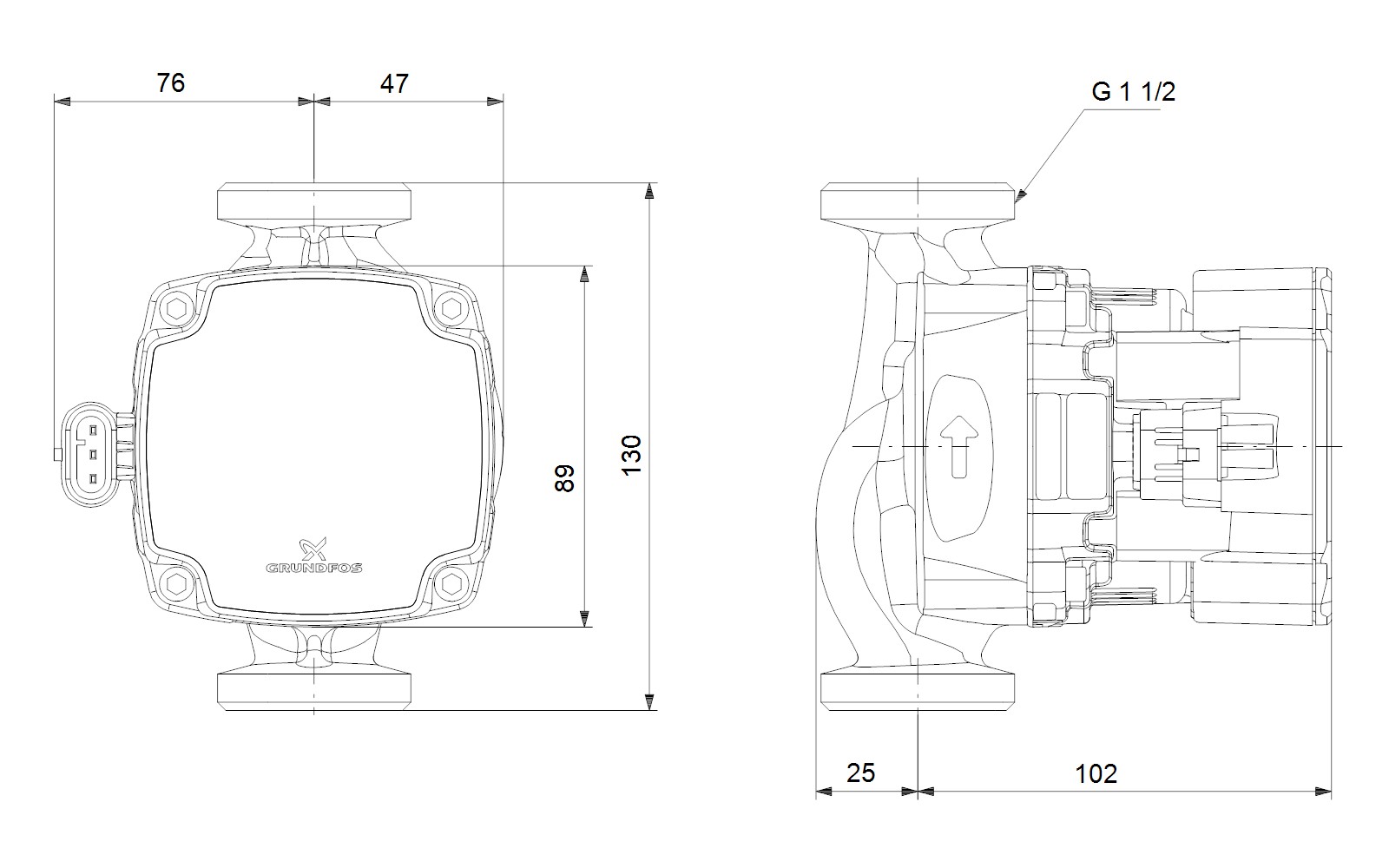

| Port-to-port length | 130 mm |
| Max water pressure | 10 bar |
| Power consumption | 60 W |
| Voltage | 220-240 |
| Rated current | 0.6 A |
| IP rating | IP44 |
| Energy efficiency index (EEI) | ≤ 0.20 |
| Height | 130 mm |
| Width | 123 mm |
| Depth | 127 mm |
| Weight | 1.86 kg |
| Installation type | Inline (pipe-mounted) |
| Approvals | CE, UKCA, VDE |
| Guarantee | 5 years |
