Twin-impeller 1.5 bar shower pump for gravity-fed hot and cold supplies: up to 32 l/min, flow-switch start, four anti-vibration hoses included and a 3-year guarantee. For positive-head systems with a tank and cylinder.
€150.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

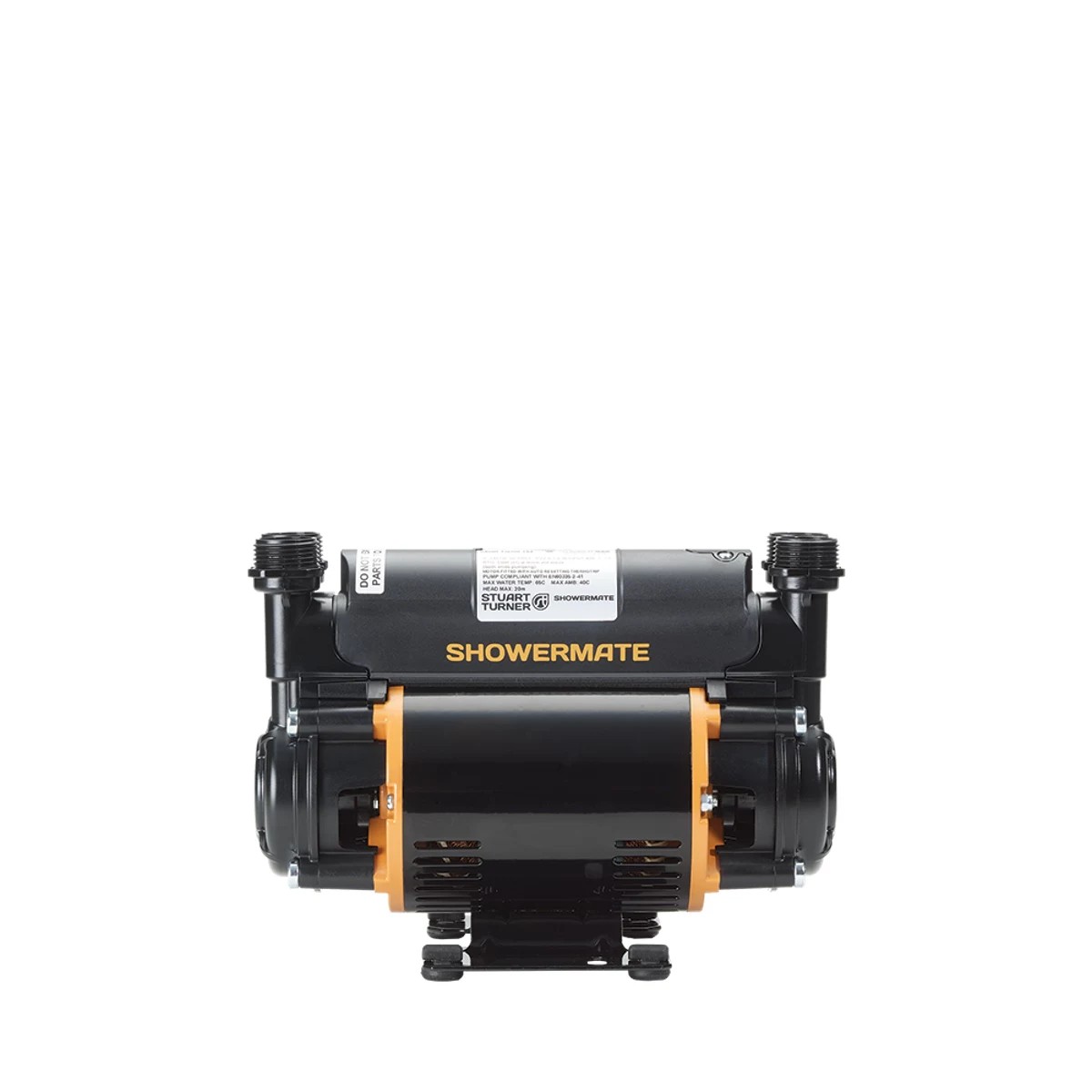

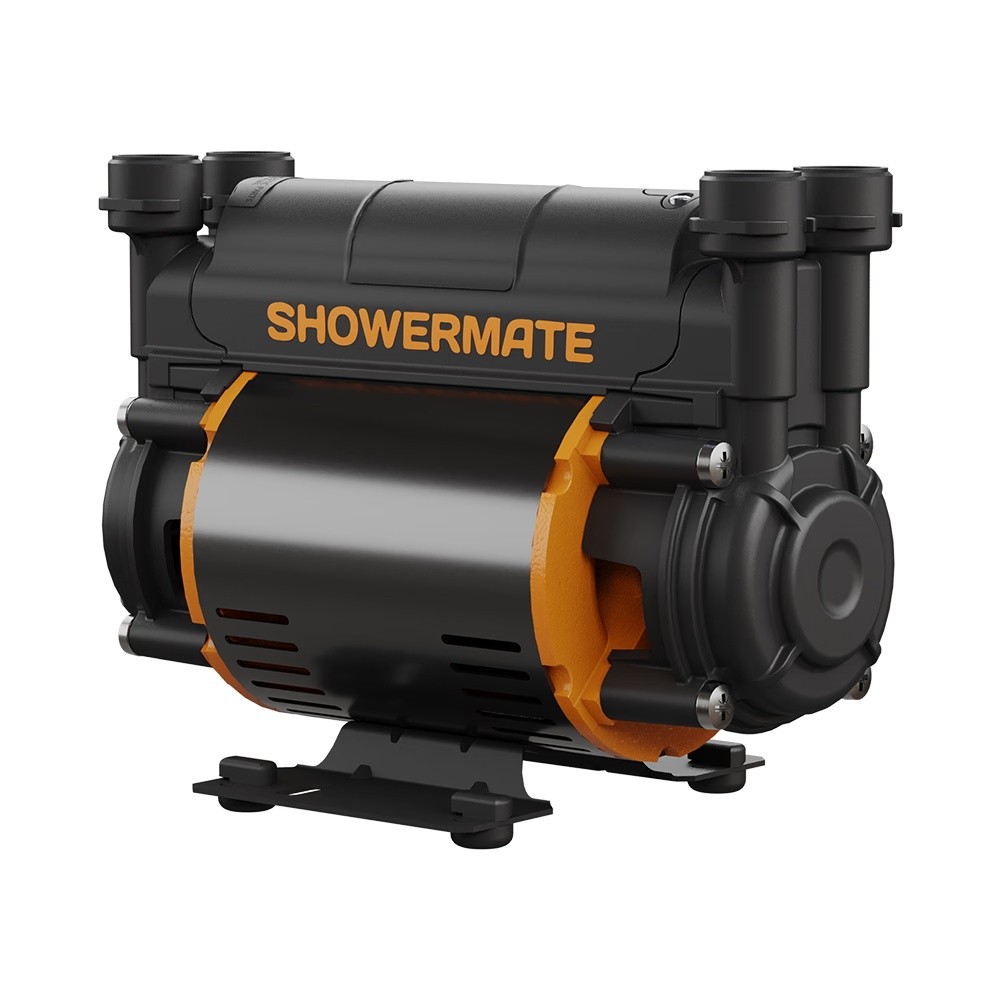

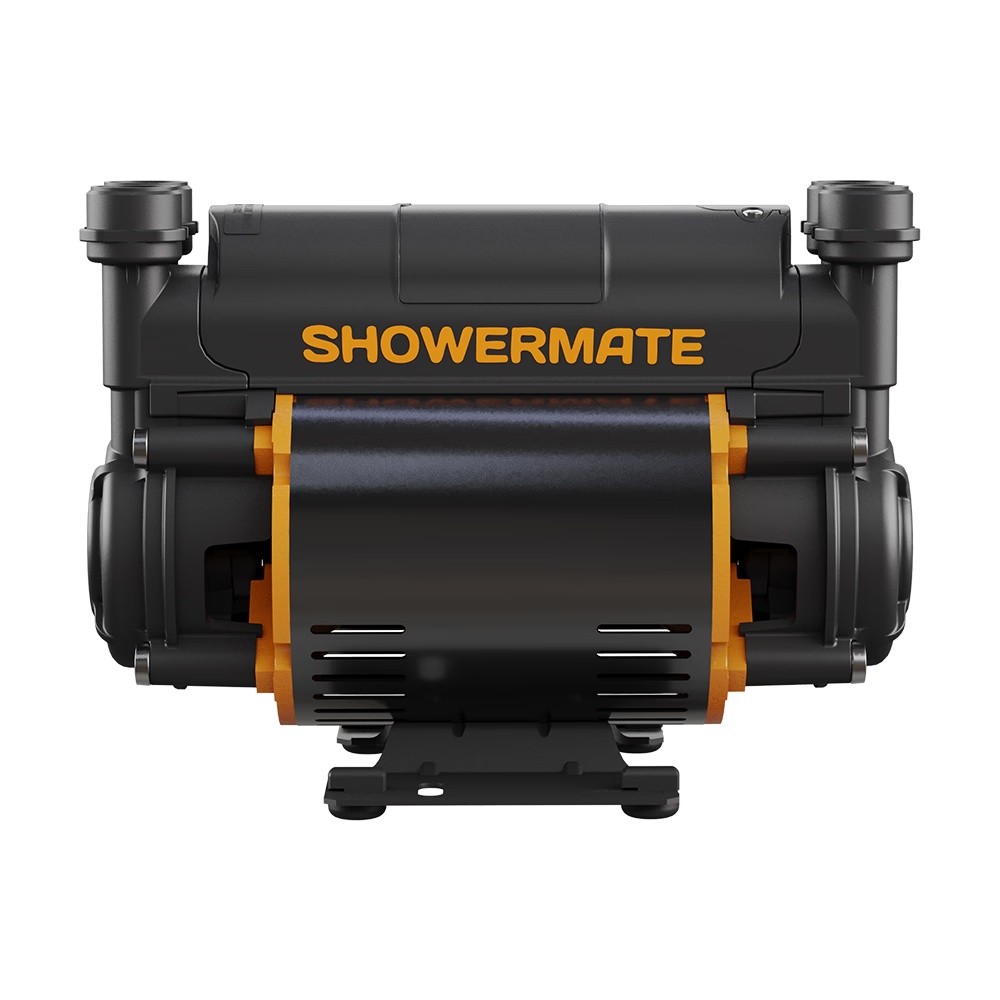

The Showermate Standard S1.5 Bar Twin is a compact twin-head peripheral pump that boosts the hot and cold feeds equally. It has a continuously rated induction motor with auto-reset thermal trip, a flow switch that starts it at about 0.8 l/min, dry-run protection, anti-vibration feet and four 15 mm push-fit flexible hoses, and it is pre-wired with a 1.5 m cable.
It is only for open-vented (gravity) systems with a cold tank and hot cylinder, in positive-head positions where there is already more than 2 l/min flowing at the outlet; it must not be used on combi, unvented or mains-pressure systems. Expect about 1.1 bar at 9 l/min. Fit it at or below the base of the cold tank, use a dedicated hot draw-off (e.g. Surrey/Essex flange) and connect it to a fused 230 V spur with a 5 A fuse; enclosure is IP22, so keep it out of the shower zones.
Data come from Stuart Turner’s product page and Showermate Standard datasheet, which prevail. Stuart Turner gives a 3-year guarantee (subject to conditions) in addition to the statutory guarantee.
| Brand | Stuart Turner |
|---|---|
| Model | Showermate Standard S1.5 Bar Twin |
| MPN / Manufacturer code | 47342 |
| EAN / GTIN | 5050400473428 |
| Range / Series | Showermate |
| Finish / Colour | Black / orange |
| Pump type | Shower pump |
| Impeller type | Peripheral / regenerative |
| Pump heads | Twin |
| Head application | Positive head |
| Pump control | Flow switch |
| Material | Plastic pump body and impeller; EPDM/PTFE/Al oxide mechanical seal |
| Suitable for | Hot and cold gravity (vented) supplies to one shower or up to four bathroom outlets |
| Max head | 15 m |
| Max pressure | 1.5 bar |
| Max flow rate | 32 l/min |
| Duty point | 1.1 bar @ 9 l/min; 0.6 bar @ 18 l/min |
| Minimum activation flow | 0.8 l/min |
| Max liquid temperature | 65 °C |
| Noise level | 57 dB(A) |
| Connection size | 15 mm push-fit hoses (G 3/4" M pump ports) |
| Max water pressure | 3.8 bar |
| Water supply type | Gravity (vented) |
| Power consumption | 385 W |
| Voltage | 230 V AC, 50 Hz |
| Rated current | 1.7 A |
| Fuse rating | 5 A |
| IP rating | IP22 |
| Height | 171 mm |
| Width | 132 mm |
| Depth | 231 mm |
| Weight | 4.7 kg |
| Installation type | Floor-standing |
| Dry-run protection | Yes |
| Included in box | 4 anti-vibration flexible hoses (G 3/4" F × 15 mm push-fit, 200 mm), anti-vibration feet, 1.5 m pre-wired cable |
| Approvals | WRAS approved, Kiwa Reg 4, UKCA, CE |
| Guarantee | 3 years |
