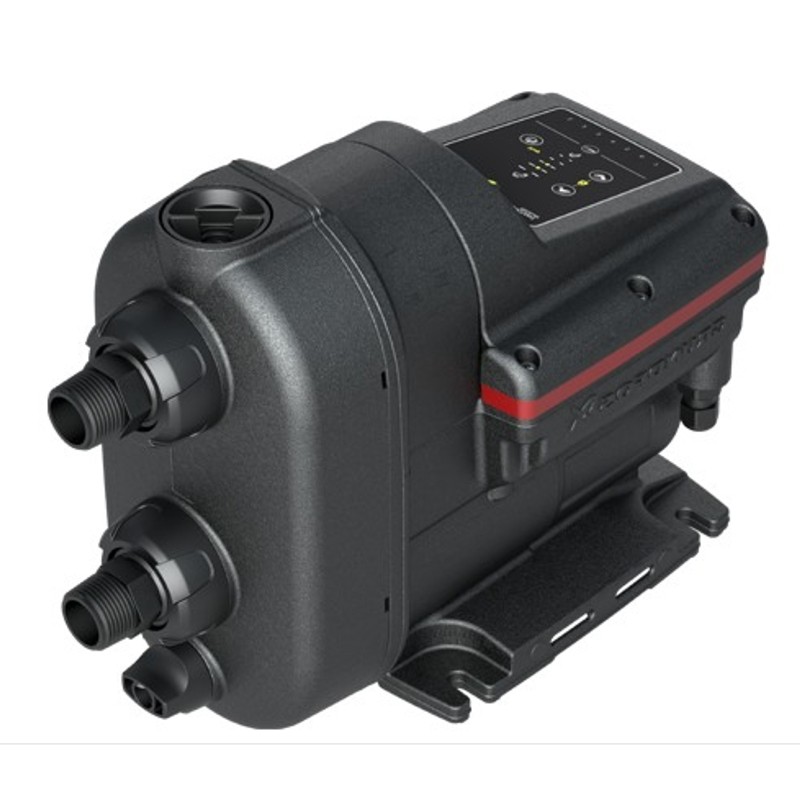

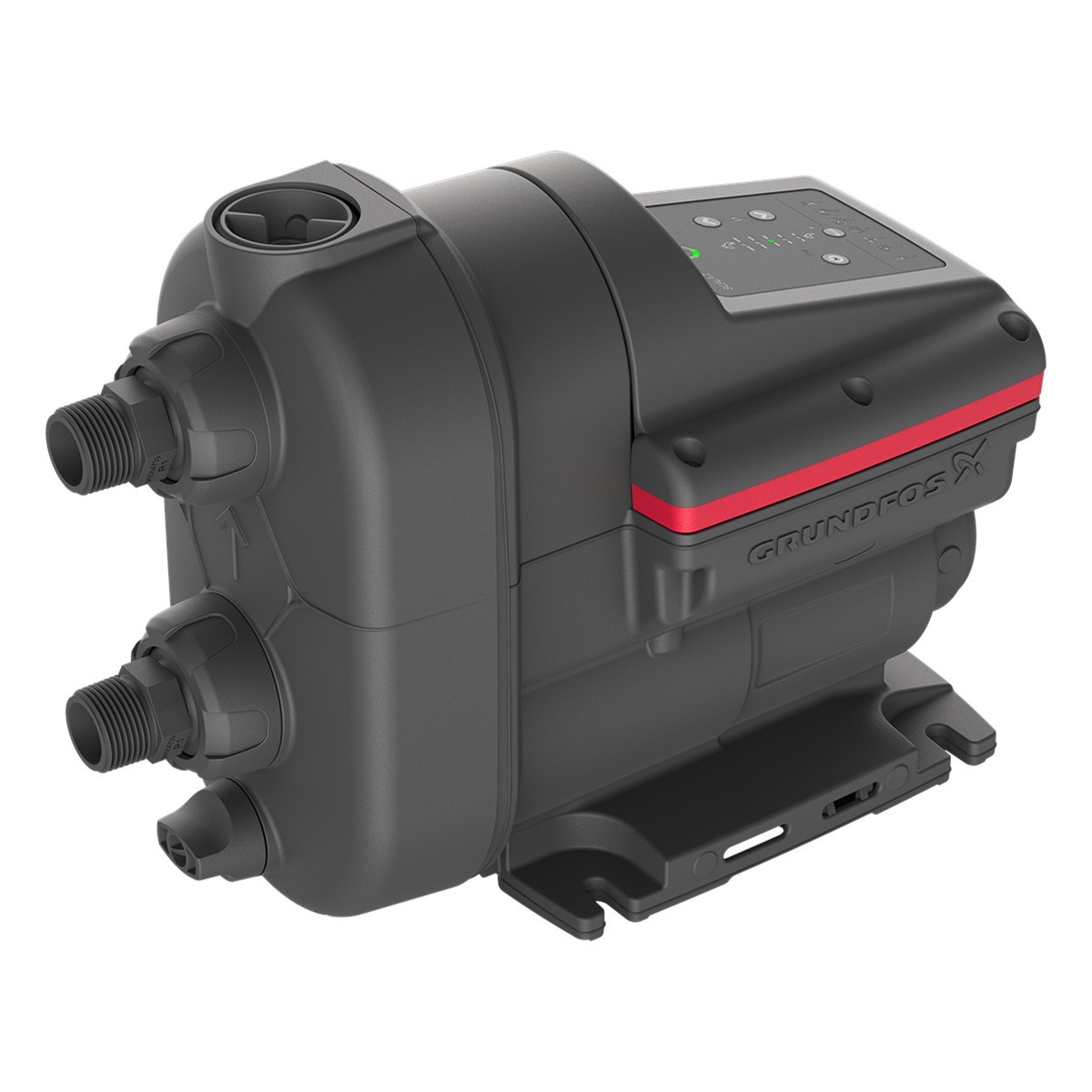

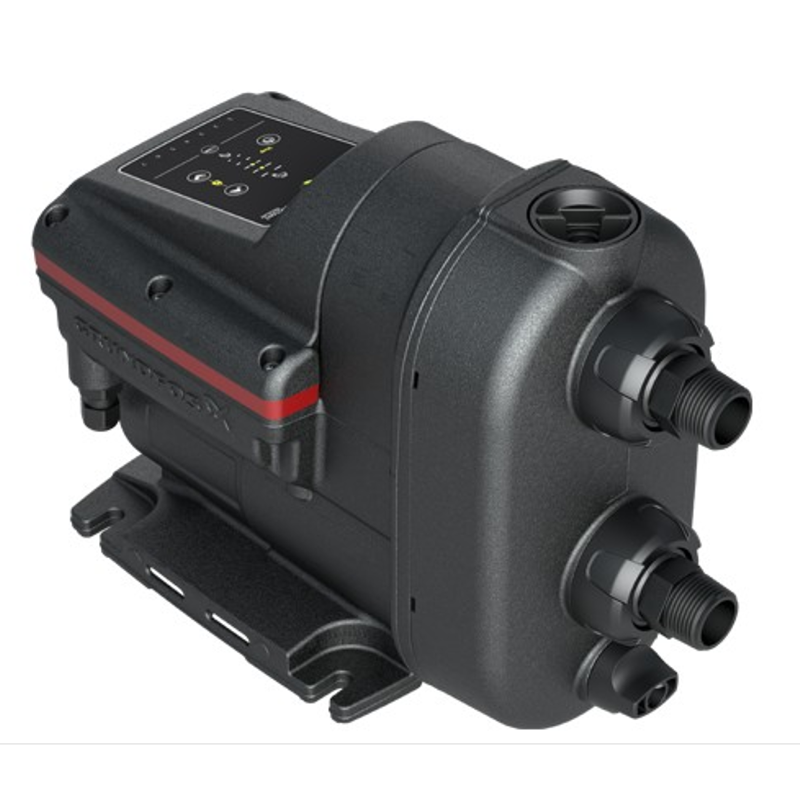

Grundfos SCALA2 3-45 A (93013252): self-priming, variable-speed domestic booster set with integrated controller. Up to 45 m head and 4.6 m³/h, 550 W, 1″ connections, dry-run protection, 9.8 kg.
€495.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

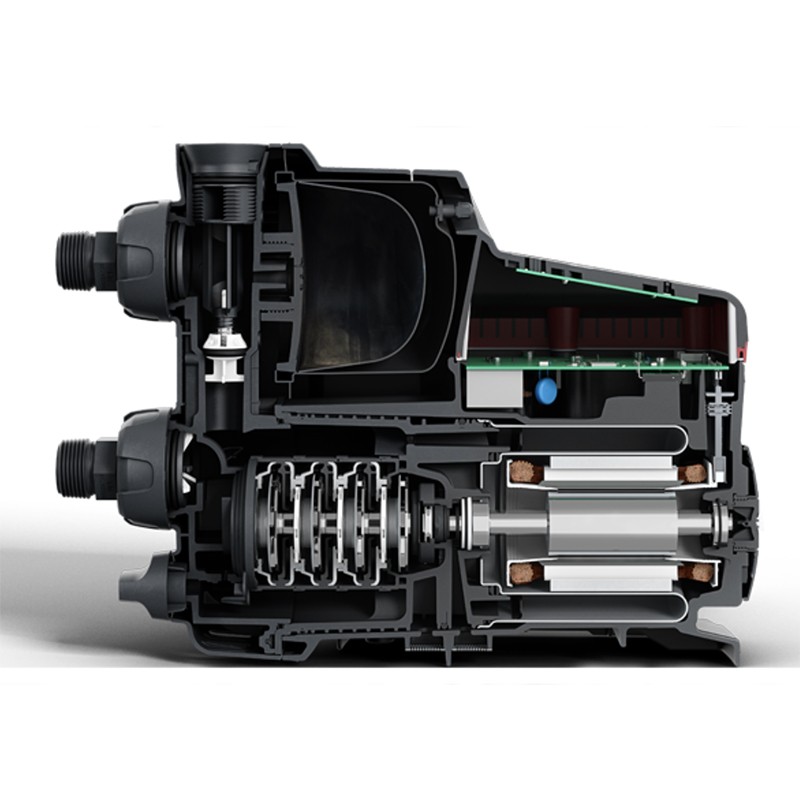

SCALA2 is Grundfos’s all-in-one domestic pressure set: a multistage centrifugal pump, frequency converter, pressure and flow sensors, non-return valve and control panel built into one composite housing, with no external pressure vessel. The speed of the motor follows the water demand, so pressure at the taps stays constant whether one or several outlets are open. This is the current version, product number 93013252.

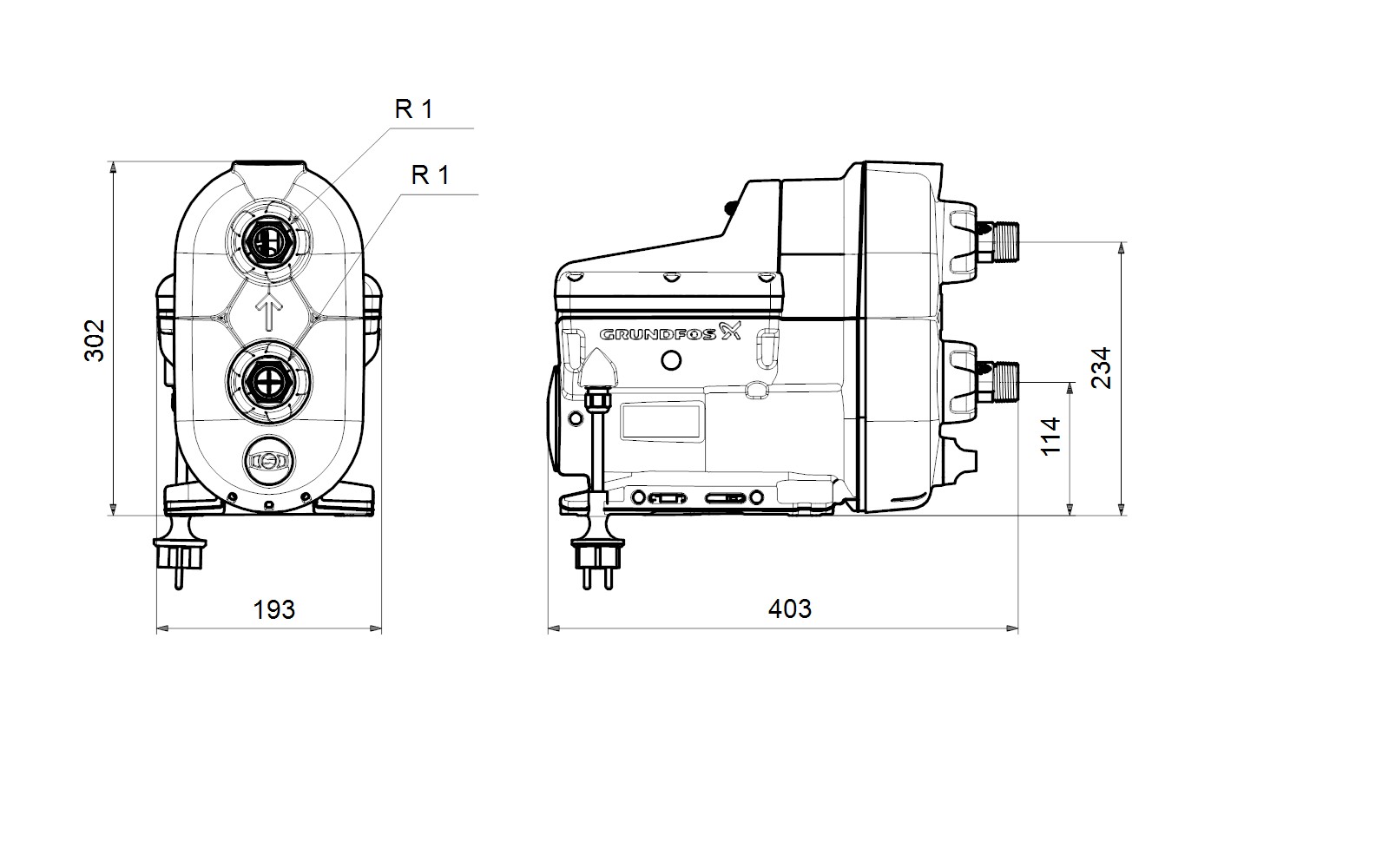

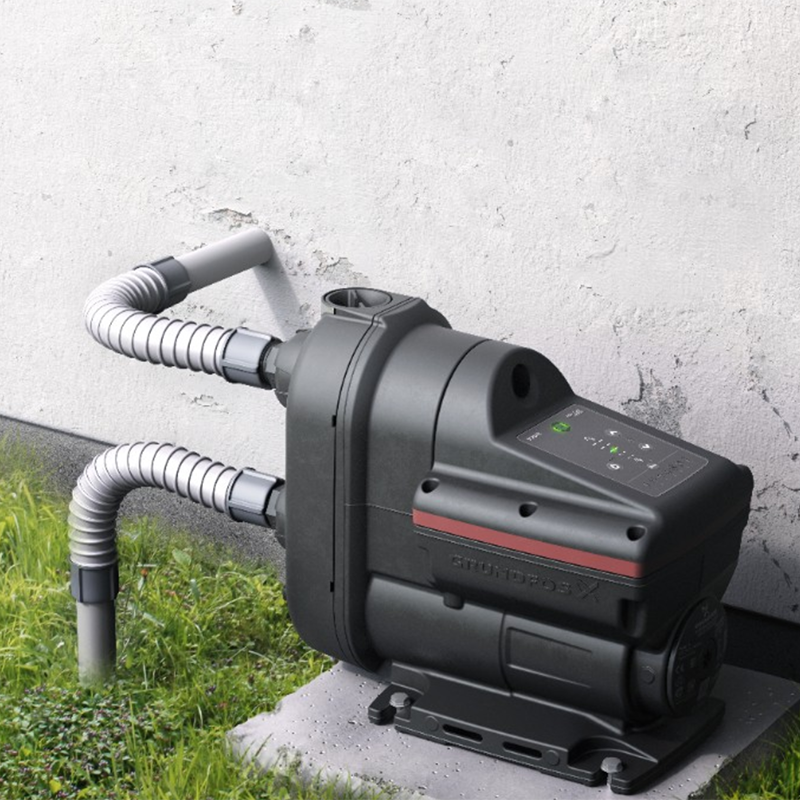

Typical uses are boosting supply from a storage tank, well or rainwater cistern, or raising low supply pressure in a house where local rules allow direct boosting. Grundfos allows a maximum inlet pressure of 6 bar. Check the available space (about 403 × 193 × 302 mm), a frost-free position, a 1″ R threaded connection on suction and delivery, and a protected 230 V socket; in Spain the installation must follow the CTE HS4 water-supply rules and, for mains connections, the requirements of the local water company.
Data come from the Grundfos product centre and Grundfos documentation, which prevail. No manufacturer guarantee period is specified; the statutory guarantee applies.
| Brand | Grundfos |
|---|---|
| Model | SCALA2 3-45 A |
| MPN / Manufacturer code | 93013252 |
| EAN / GTIN | 5715122954975 |
| Range / Series | SCALA2 |
| Finish / Colour | Black |
| Pump type | Inverter booster set |
| Impeller type | Multistage centrifugal |
| Head application | Negative / universal head |
| Pump control | Inverter / variable speed |
| Material | Pump housing and impellers in composite (Noryl FE1630PW PPE+PS-GS30); seal CER/CAR EPDM |
| Suitable for | Whole-house pressure boosting from tank, well or rainwater; mains boosting where permitted |
| Max head | 45 m |
| Max pressure | 4.5 bar |
| Max flow rate | 76.7 l/min |
| Duty point | 27 m @ 3 m³/h (50 l/min) |
| Max liquid temperature | 45 °C |
| Connection size | 1" R male thread inlet/outlet (EN 10226-1) |
| Max water pressure | 10 bar |
| Water supply type | Rainwater / well |
| Power consumption | 550 W |
| Voltage | 200-240 |
| Rated current | 2.8 A |
| IP rating | IPX4D |
| Height | 302 mm |
| Width | 193 mm |
| Depth | 403 mm |
| Weight | 9.8 kg |
| Installation type | Floor-standing |
| Dry-run protection | Yes |
| Included in box | Pump unit with integrated controller, 1.5 m cable with Schuko (E/F) plug |
| Approvals | CE, VDE, UKCA; drinking water KIWA, WRAS, ACS |
