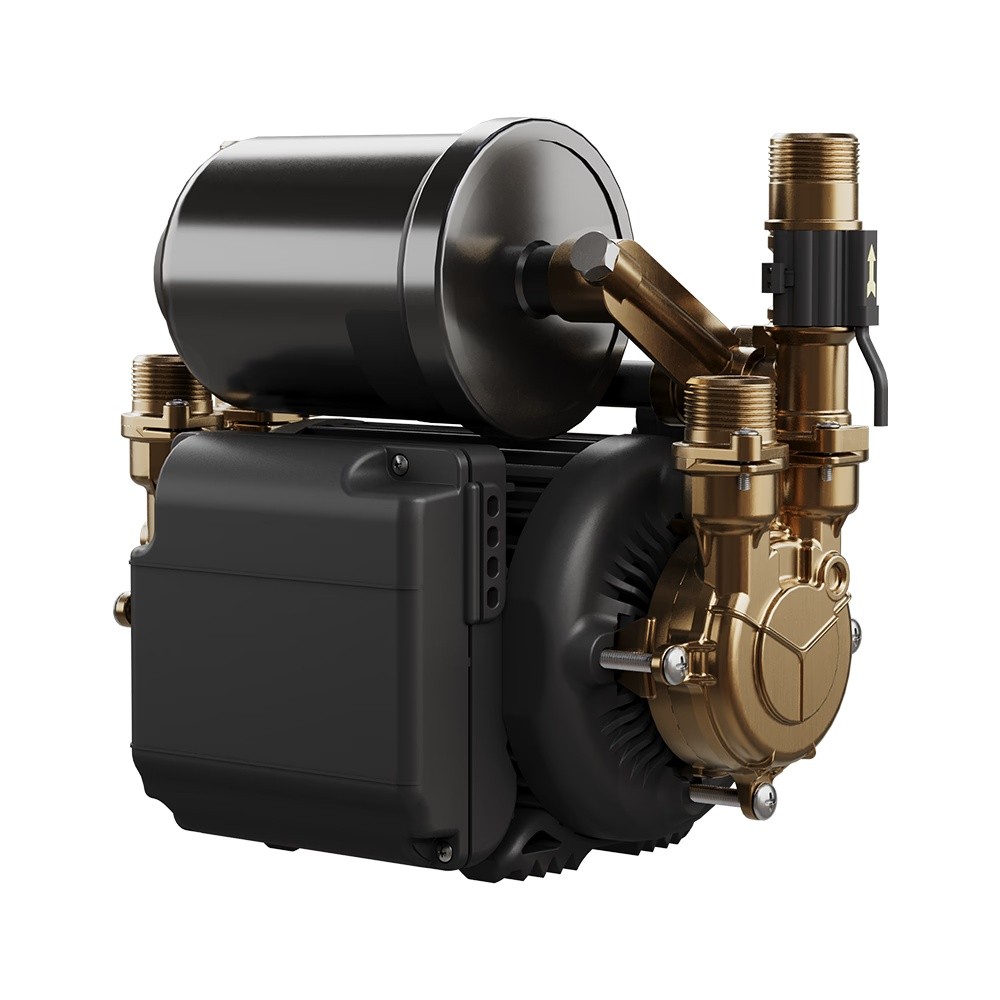

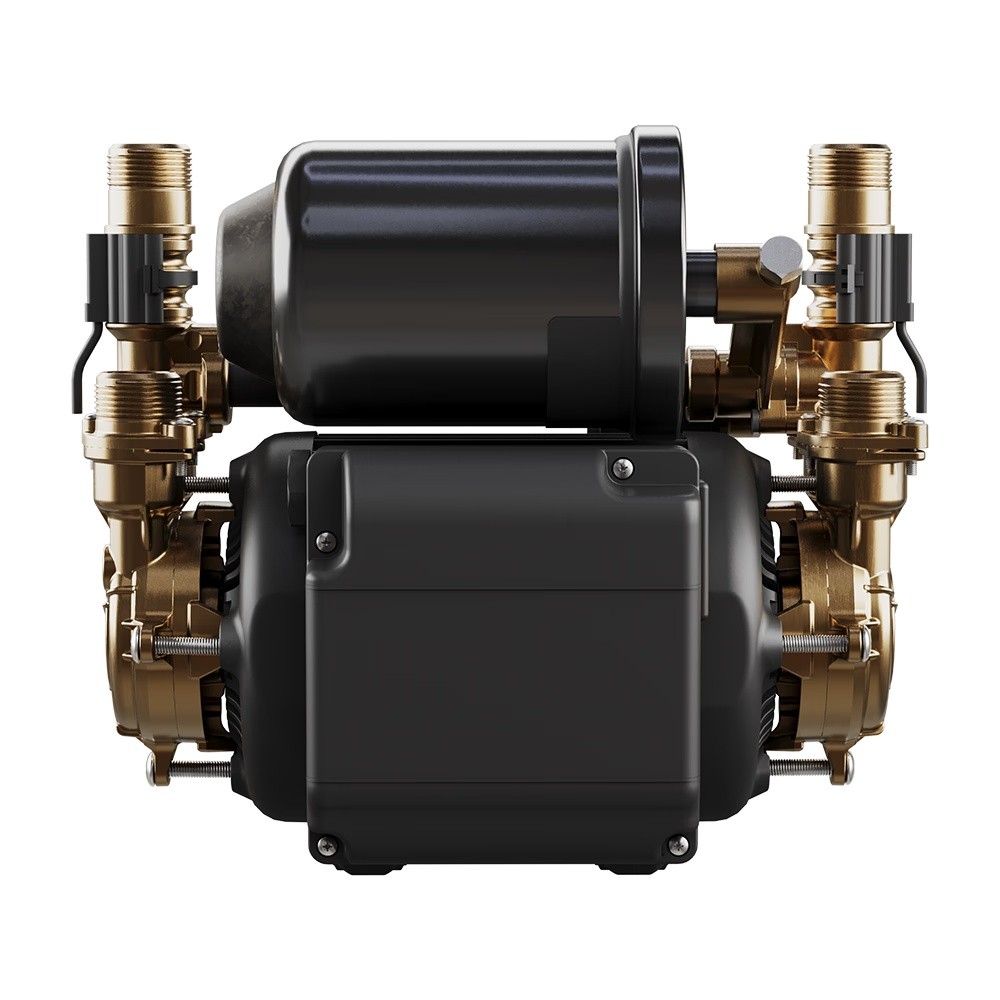

Stuart Turner Monsoon Universal 3.0 bar twin pump (46410) for vented systems in positive or negative head. Brass body and impellers, 40 l/min max flow, 54 dB(A), WRAS approved, 5-year guarantee.
€596.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.
The Monsoon Universal U3.0 is a twin-impeller peripheral pump that boosts the hot and cold supplies equally, built with a brass pump body and brass impellers. ‘Universal’ means it starts on both flow and pressure, so it works in positive-head installations and in negative-head ones where the shower is above the cold tank. It delivers up to 3.0 bar at closed valve and around 1.9 bar at 18 l/min.
It is for UK-style vented systems with a cold storage tank and a hot cylinder, feeding a shower, a bathroom or several outlets; it must not be connected to a combi boiler, an unvented cylinder or the mains. Before buying, check the tank capacity and the cylinder feed, that the pump can sit on a level, accessible floor below the tank with 22 mm feeds (a Surrey or Essex flange is often needed on the hot draw-off), and that a fused spur with a 5 A fuse is available. Stuart Turner’s installation guide and the Water Supply (Water Fittings) Regulations apply.
Specifications are taken from Stuart Turner’s model page and datasheet, which prevail. Stuart Turner gives a 5-year guarantee (subject to its conditions) in addition to the statutory guarantee.
| Brand | Stuart Turner |
|---|---|
| Model | Monsoon Universal U3.0 Bar Twin |
| MPN / Manufacturer code | 46410 |
| EAN / GTIN | 5050400464105 |
| Range / Series | Monsoon Universal |
| Finish / Colour | Black / brass |
| Pump type | Shower pump |
| Impeller type | Peripheral / regenerative |
| Pump heads | Twin |
| Head application | Negative / universal head |
| Pump control | Flow + pressure |
| Material | Brass pump body and impellers; seal EPDM/PTFE/aluminium oxide |
| Suitable for | Showers, bathrooms and multiple outlets on vented (gravity) hot and cold systems |
| Max head | 30 m |
| Max pressure | 3.0 bar |
| Max flow rate | 40 l/min |
| Duty point | 2.5 bar @ 9 l/min; 1.9 bar @ 18 l/min |
| Minimum activation flow | 0.6 l/min |
| Max liquid temperature | 65 °C |
| Noise level | 54 dB(A) |
| Connection size | G ¾ male pump ports; 4 anti-vibration hoses G ¾ F × G ¾ F, 318 mm |
| Max water pressure | 6 bar |
| Water supply type | Gravity (vented) |
| Power consumption | 655 W |
| Voltage | 230 V |
| Rated current | 2.9 A |
| Fuse rating | 5 A |
| IP rating | IPX4 |
| Height | 243 mm |
| Width | 162 mm |
| Depth | 265 mm |
| Weight | 9.2 kg |
| Installation type | Floor-standing |
| Dry-run protection | Yes |
| Included in box | 4 anti-vibration hoses, inlet strainers, anti-vibration feet, 1.5 m pre-wired cable |
| Approvals | WRAS, Kiwa KUKreg4, UKCA, CE |
| Guarantee | 5 years |
