Compact all-in-one inverter booster pump with built-in 1 l vessel, sensors and display. Holds a constant set pressure up to 5.5 bar, delivers up to 80 l/min and self-primes from 8 m. For homes fed from a break tank, rainwater tank or well.
€431.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

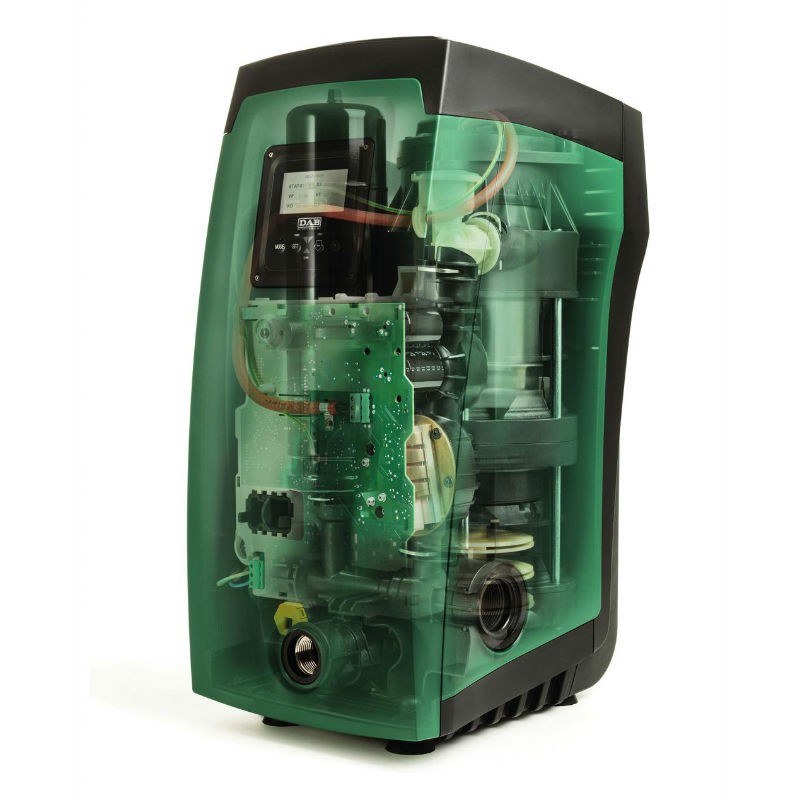

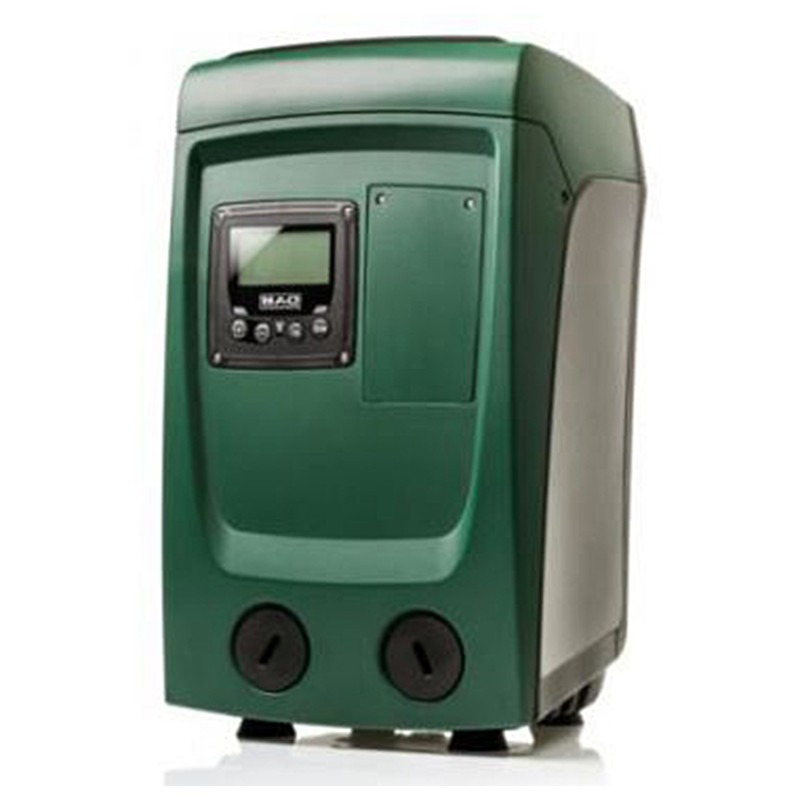

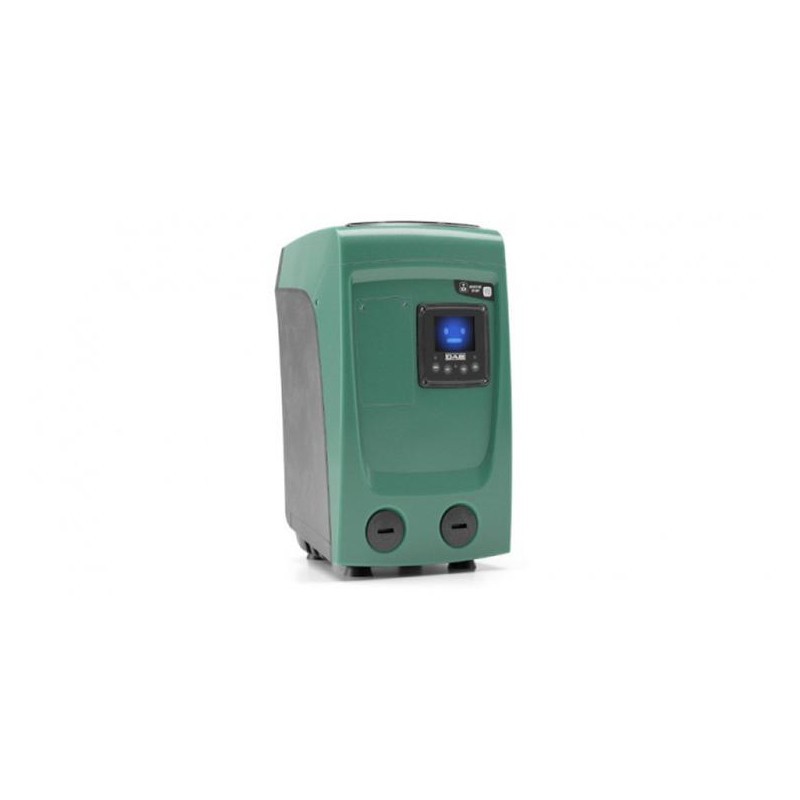

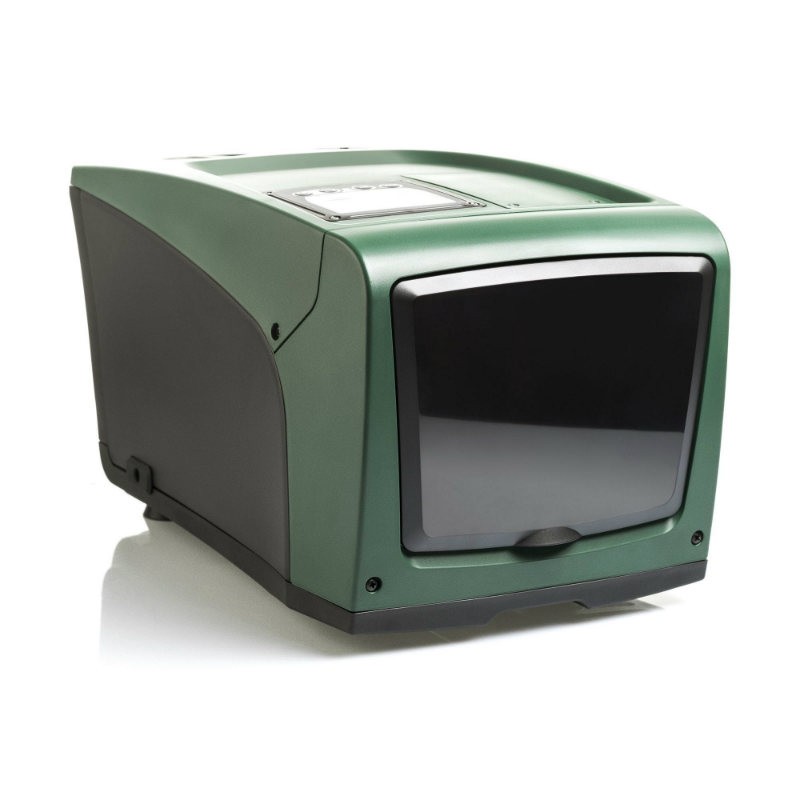

The DAB Esybox Mini 3 is an all-in-one electronic pressure booster: a self-priming three-impeller centrifugal pump, a variable-speed inverter, pressure and flow sensors, a non-return valve and a 1-litre expansion vessel are built into one compact, sound-damped housing with an orientable display. The inverter adjusts motor speed to demand so the set pressure (adjustable from 1 to 5.5 bar) stays constant as taps open and close, and the water-cooled motor keeps running noise low.
In UK homes it is normally fed from a cold-water break tank (Category 5 air gap) or a rainwater/well supply rather than connected directly to the mains, so plan the tank, an isolating valve on each side and 1″ G connections (union kit sold separately). It can lie horizontally, stand vertically or be wall mounted with the optional bracket; leave room around it for ventilation and service. It needs a 230 V single-phase supply rated for 850 W / 4.8 A, protected by an RCD, and the pumped water must be clean and below 35 °C for domestic use.
Technical data come from DAB documentation (Esybox Mini 3 technical sheet and data sheet), which prevails over this description. No manufacturer guarantee period is specified; the statutory guarantee applies.
| Brand | DAB |
|---|---|
| Model | Esybox Mini 3 |
| MPN / Manufacturer code | 60212601 |
| Range / Series | Esybox Line (E.SYLINE) |
| Finish / Colour | Green / grey |
| Pump type | Inverter booster set |
| Impeller type | Multistage centrifugal |
| Head application | Negative / universal head |
| Pump control | Inverter / variable speed |
| Material | Sound-absorbing ABS hull; Noryl impellers and diffusers; stainless steel AISI 304 motor sleeve; brass 1" inserts |
| Suitable for | Domestic boosting from a break tank, rainwater tank or shallow well; up to about 3 floors / 2 bathrooms |
| Max head | 55 m |
| Max pressure | 5.5 bar |
| Max flow rate | 80 l/min |
| Duty point | Constant pressure settable 1–5.5 bar |
| Max suction lift | 8 m |
| Max liquid temperature | 35 °C (domestic use; 40 °C other uses) |
| Noise level | 45 dB(A) |
| Connection size | 1" G suction and delivery |
| Max water pressure | 7.5 bar |
| Pressure vessel volume | 1 l |
| Water supply type | Rainwater / well |
| Power consumption | 850 W |
| Voltage | 220–240 V, 50 Hz, single phase |
| Rated current | 4.8 A |
| IP rating | IPX4 |
| Height | 236 mm |
| Width | 263 mm |
| Depth | 439 mm |
| Weight | 14.6 kg |
| Installation type | Floor-standing |
| Dry-run protection | Yes |
| Included in box | Pump unit with integrated inverter, pressure/flow sensors, 1 l expansion vessel and non-return valve; 1.5 m power cable with plug |
| Approvals | WRAS, ACS, NF; CE / UKCA |
