Compact wet-rotor booster with a built-in flow switch that starts automatically when a tap opens. Up to 12 m head (1.2 bar), water 2–95 °C, 200 mm port-to-port, Schuko plug. For raising weak pressure at showers, taps and gas boiler inlets.
€154.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

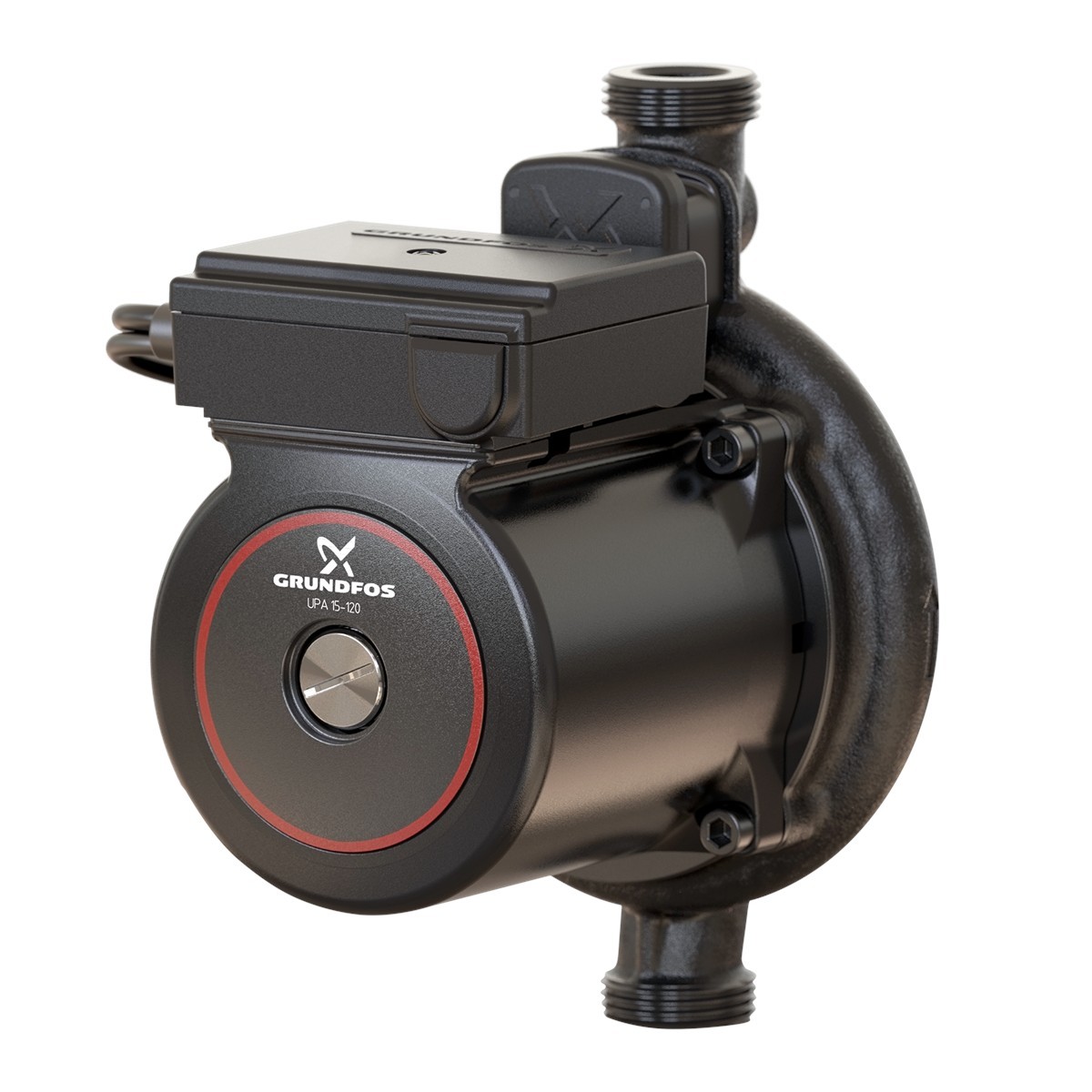

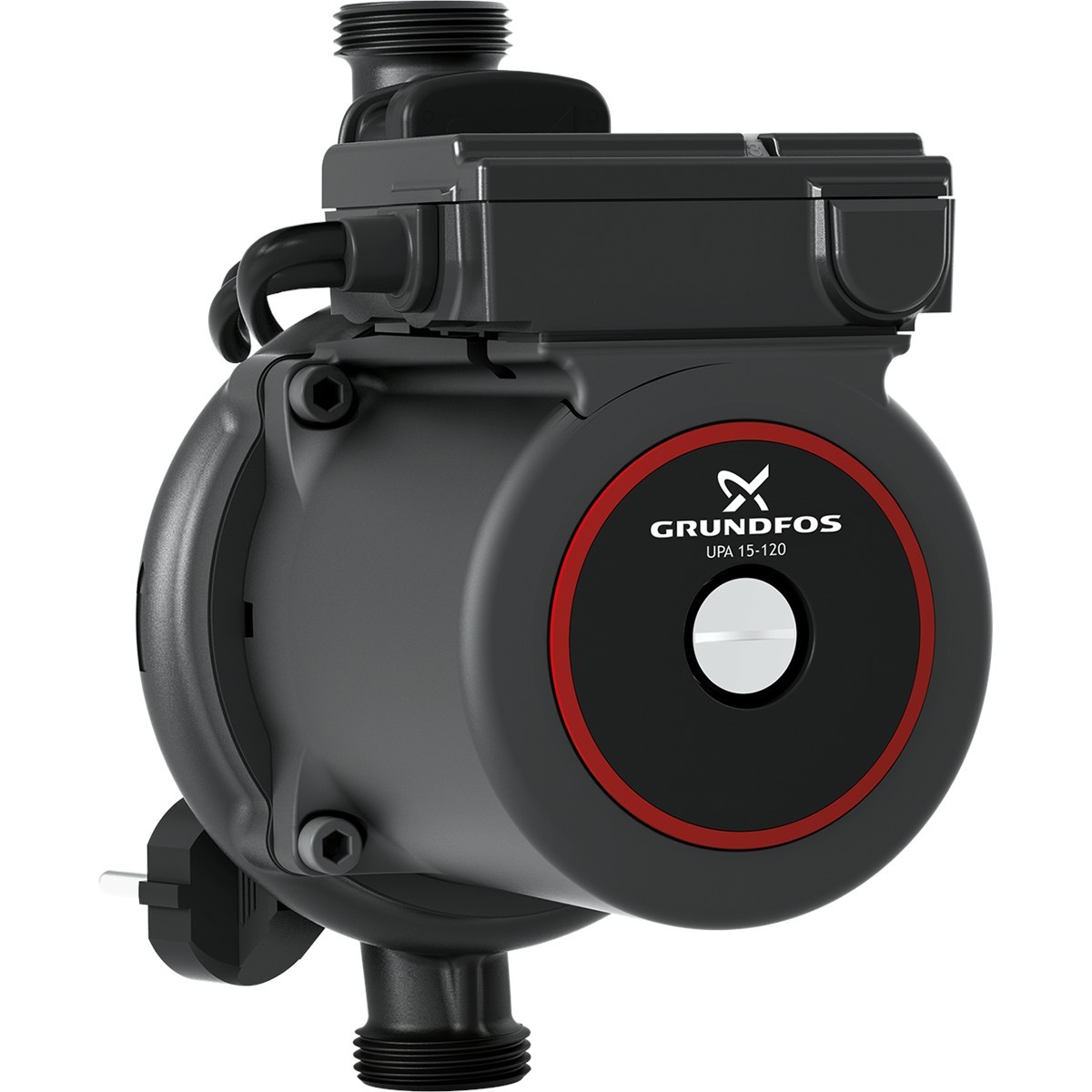

The UPA 15-120 is Grundfos’s plug-and-pump home booster: a single-speed wet-rotor circulator with cast-iron housing (EN-GJL-150), a PP-GF30 composite impeller and a patented built-in flow switch that starts the pump when a tap is opened and stops it when it closes. Wet-rotor construction keeps it practically silent, and it is internally thermally protected.
It suits flats and houses with low network pressure or a roof-top tank, and instantaneous gas water heaters that need more inlet pressure; it can serve several taps at once. Install it in line on the supply with 1″ connections and 200 mm between ports, with the motor shaft horizontal and the arrow in the flow direction, and plug it into an earthed Schuko socket. Check local water-company rules before pumping directly from the network; water may be 2–95 °C and system pressure up to 10 bar.
If any figure on this page differs from the manufacturer’s documentation, the manufacturer’s documentation prevails. No manufacturer guarantee period is specified; the statutory guarantee applies.
| Brand | Grundfos |
|---|---|
| Model | UPA 15-120 |
| MPN / Manufacturer code | 99553575 |
| EAN / GTIN | 5713830937983 |
| Range / Series | UPA home booster |
| Pump type | Mains booster pump |
| Impeller type | Canned rotor (wet rotor) |
| Pump control | Flow switch |
| Material | Cast iron EN-GJL-150 housing; PP-GF30 impeller |
| Max head | 12 m |
| Max pressure | 1.2 bar |
| Max liquid temperature | 95 °C |
| Connection size | G 1" |
| Port-to-port length | 200 mm |
| Max water pressure | 10 bar |
| Power consumption | 200 W |
| Voltage | 1 × 230 V, 50 Hz |
| Rated current | 0.89 A |
| IP rating | X2D |
| Weight | 4.79 kg |
| Installation type | Inline (pipe-mounted) |
| Approvals | CE, WEEE |
