Compact single-lever exposed thermostatic shower valve from Mira with Magni-Flo technology, working from 0.1 bar on all systems. Valve only – add your own hose, rail and handset. WRAS and TMV2 approved.
€160.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

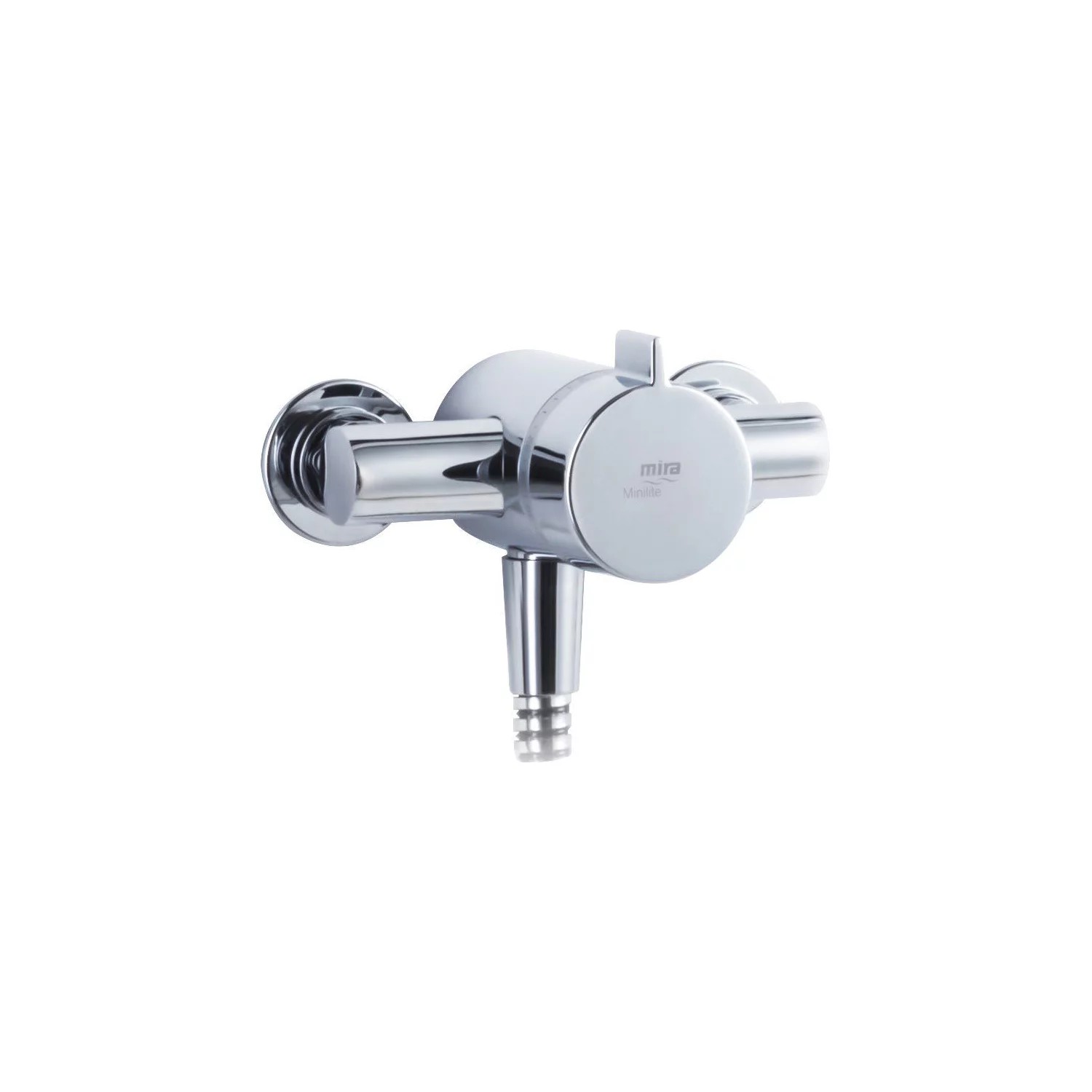

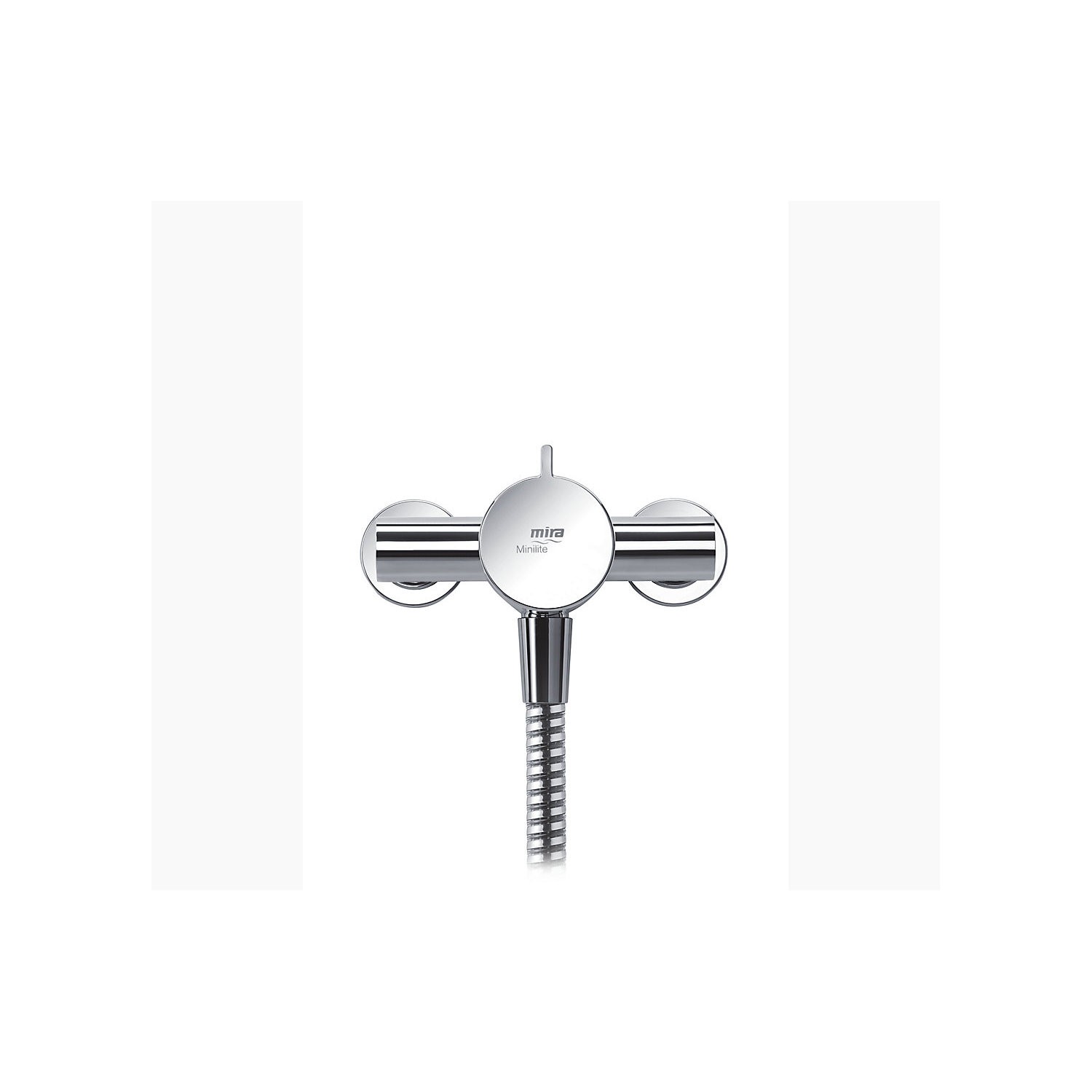

The Minilite EV is Mira’s compact exposed thermostatic valve in chrome-plated brass. One lever turns the shower on and sets the temperature; the thermostatic cartridge holds it steady when other taps are used and shuts down within about two seconds if the cold supply fails. The maximum temperature is factory-set at 41 °C and can be adjusted on site. Mira’s Magni-Flo design gives about 4 l/min at only 0.1 bar and around 13 l/min at 0.5 bar.
This is the valve only: choose a hose, riser rail and handset with a 1/2″ BSP connection. It suits all systems, including low-pressure gravity, combi and unvented, from 0.1 to 5 bar maintained pressure (10 bar static), with hot water of 60-65 °C. Supplies can come from above, below or behind on 1/2″ BSP or 15 mm compression at 110 mm centres, and reversed supplies can be corrected at the valve. The body projects about 96 mm from the wall.
If any figure on this page differs from the manufacturer’s documentation, the manufacturer’s documentation prevails. Mira gives a 5-year guarantee, in addition to the statutory rights of the buyer.
| Brand | Mira |
|---|---|
| Model | Minilite EV exposed thermostatic shower valve (valve only) |
| MPN / Manufacturer code | 1.1869.005 |
| EAN / GTIN | 5013181087147 |
| Range / Series | Minilite |
| Finish / Colour | Chrome |
| Product type | Exposed thermostatic bar valve |
| Mixer type | Thermostatic |
| Installation type | Wall-mounted exposed |
| Number of outlets | 1 |
| Number of controls / handles | 1 |
| Diverter | None |
| Material | Brass |
| Water supply type | All systems |
| Min water pressure | 0.1 bar |
| Max water pressure | 5 bar |
| Flow rate | 13 (0.5 bar); 4.1 (0.1 bar) |
| Temperature safety stop | 41 (factory set, adjustable) |
| Max hot inlet temperature | 65 °C |
| Cartridge type | Thermostatic cartridge (replaceable) |
| Connection size | 1/2" BSP or 15 mm male compression inlets; 1/2" BSP male flat-face outlet |
| Inlet centres | 110 mm |
| Depth | 96 mm |
| Weight | 3 kg |
| Included in box | Exposed thermostatic valve with fittings and fixings (no hose, rail or handset) |
| Approvals | WRAS, Buildcert TMV2, CE |
| Guarantee | 5 years |
