Room-sealed gas instantaneous water heater for natural gas, 16 l/min at ΔT 25 K and 27.4 kW output, ErP A, XL profile. Compact 570 x 345 x 187 mm for kitchens and utility rooms; flue kit sold separately.
€375.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

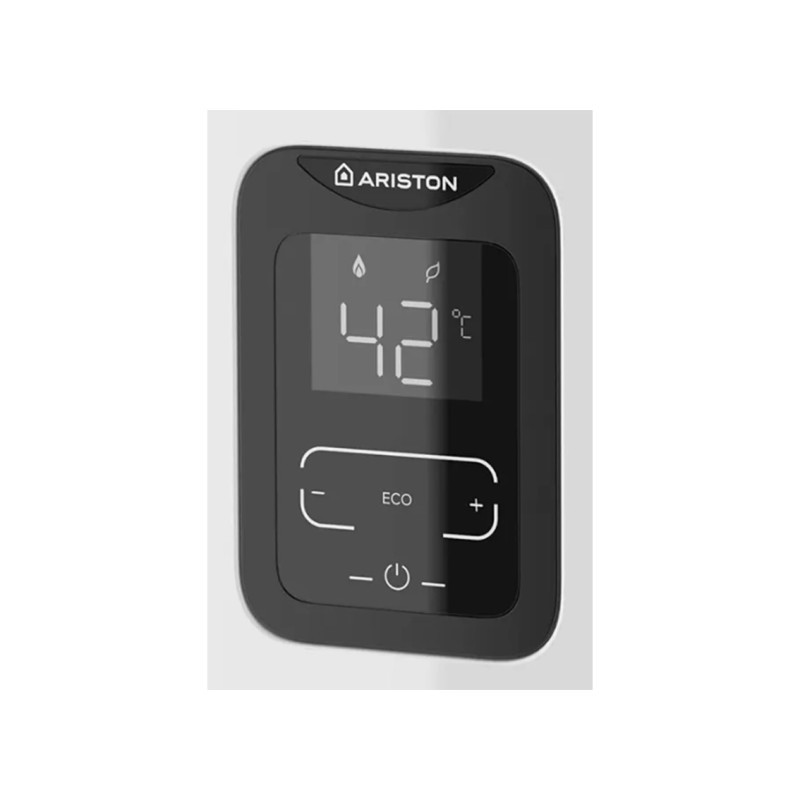

The Ariston Next Evo X 16 is a wall-hung, fan-assisted room-sealed gas water heater for natural gas (G20). Its modulating low-NOx burner (47 mg/kWh) and copper heat exchanger deliver up to 27.4 kW and 16 litres per minute with a 25 K rise; an LED touch display shows the set temperature, which can be set between 35 and 65 °C. Ignition is electronic from the 230 V supply.
It replaces a combi or older multipoint where a mains gas supply and an outside wall are available: the 60/100 mm coaxial flue (C13/C33) is bought separately. Mains water must be at least 0.2 bar and no more than 10 bar, connections are 1/2″ for hot, cold and gas, and the unit needs a fused spur. In the UK it must be installed by a Gas Safe registered engineer; LPG properties need the 11 LPG model or the approved conversion kit.
Technical data come from the Ariston UK installation manual and product page, which prevail. Ariston gives a 2-year guarantee (second year conditional on annual service), in addition to statutory rights.
| Brand | Ariston |
|---|---|
| Model | Next Evo X 16 NG (UK) |
| MPN / Manufacturer code | 3632533 |
| EAN / GTIN | 6927828021533 |
| Range / Series | Next Evo X |
| Finish / Colour | White |
| Heater type | Gas instantaneous |
| Water supply type | Mains-fed instantaneous |
| Installation type | Wall-mounted, vertical |
| Tank design | Tankless |
| Material | Copper heat exchanger |
| Heating element type | Gas burner |
| Thermostat / control type | Electronic touch display |
| Power rating | 27.4 kW |
| Hot water flow rate | 16 l/min (ΔT 25 K) |
| Max water temperature | 65 °C |
| ErP energy class | A |
| ErP load profile | XL |
| Gas type | Natural gas (G20) |
| Combustion / flue type | Room-sealed fan flue (C13/C33) |
| Flue diameter | 60/100 |
| Max heat input | 30.0 kW |
| Ignition type | Mains electronic |
| Connection size | 1/2" (water and gas) |
| Min water pressure | 0.2 bar |
| Max water pressure | 10 bar |
| Voltage | 230 V |
| Phase | Single phase |
| IP rating | IPX4D |
| Noise level | 63 dB |
| Height | 570 mm |
| Width | 345 mm |
| Depth | 187 mm |
| Weight | 15 kg |
| Included in box | Heater, wall fixings; flue kit not included |
| Approvals | CE 0063CR7772, UKCA |
| Guarantee | 2 years |
