Flat double-tank electric water heater, 74 litres real capacity and 2 kW, for vertical or horizontal mounting at just 300 mm deep. Digital Smart Control with three power settings; ErP class B, load profile M.
€199.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

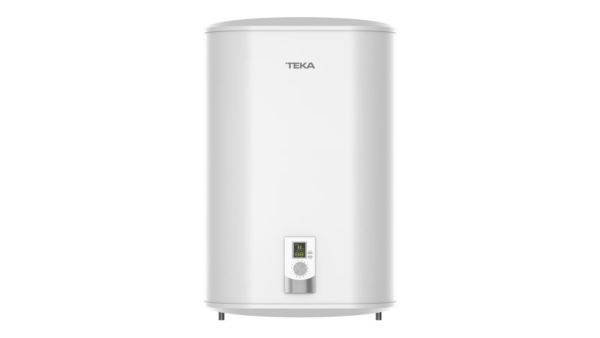

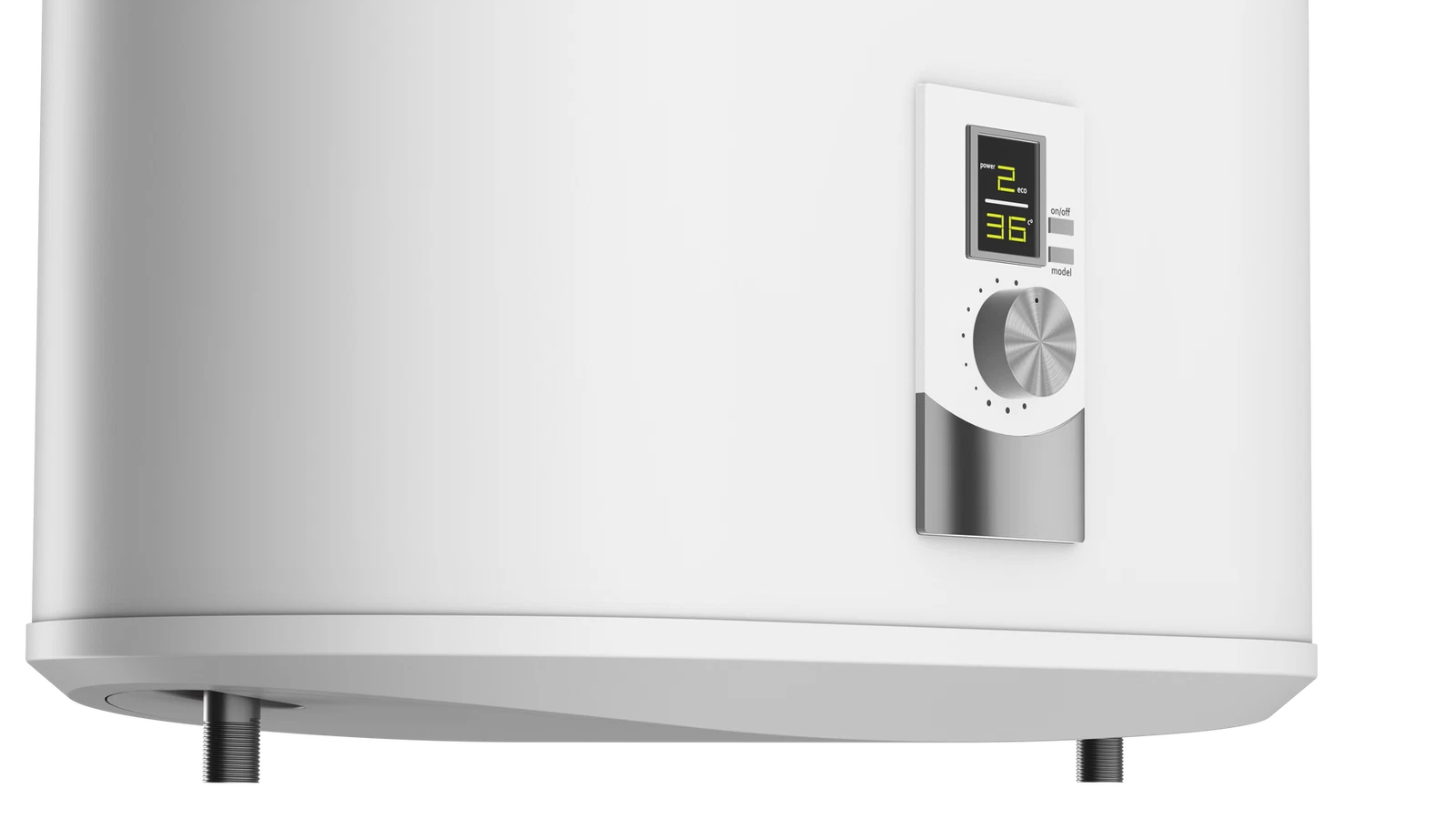

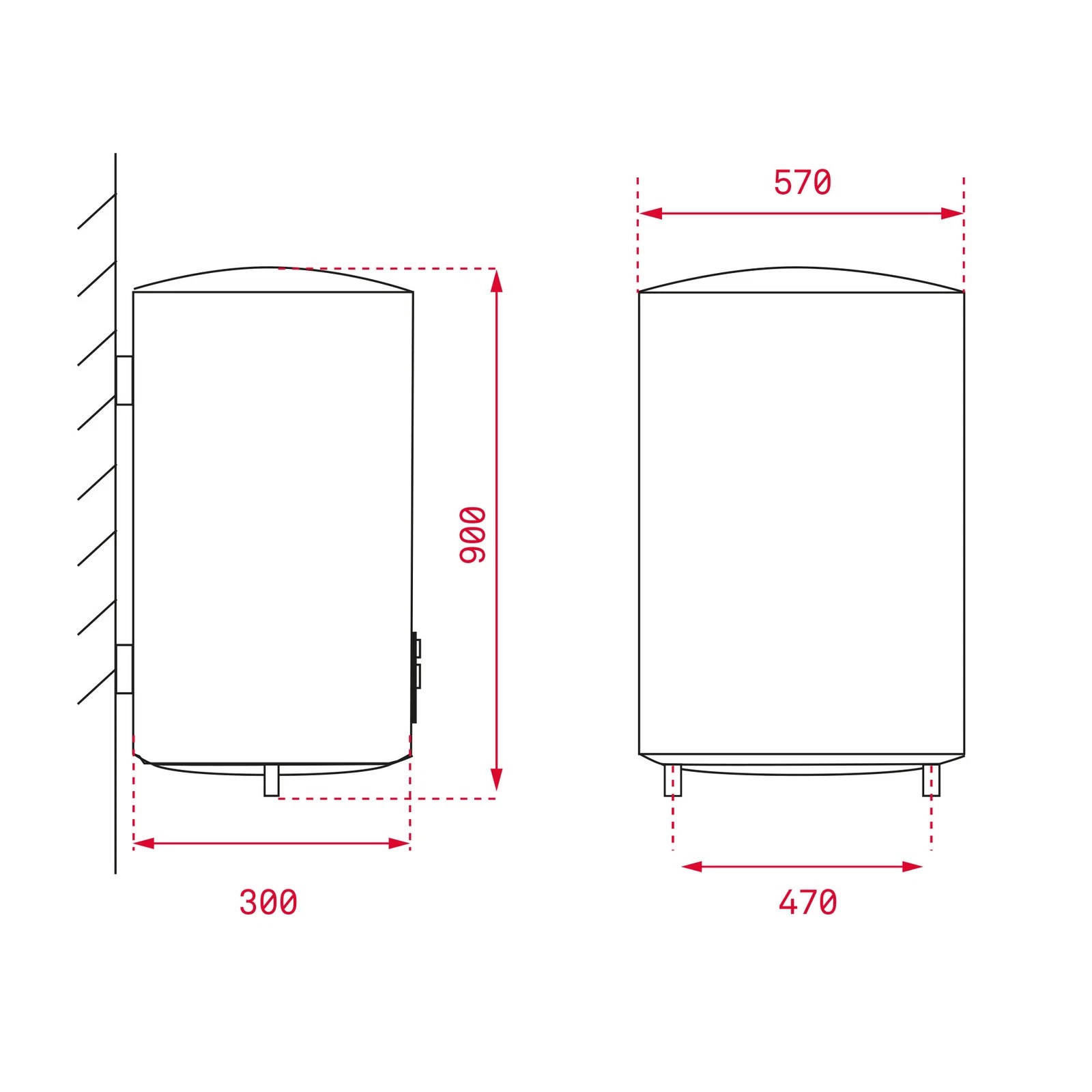

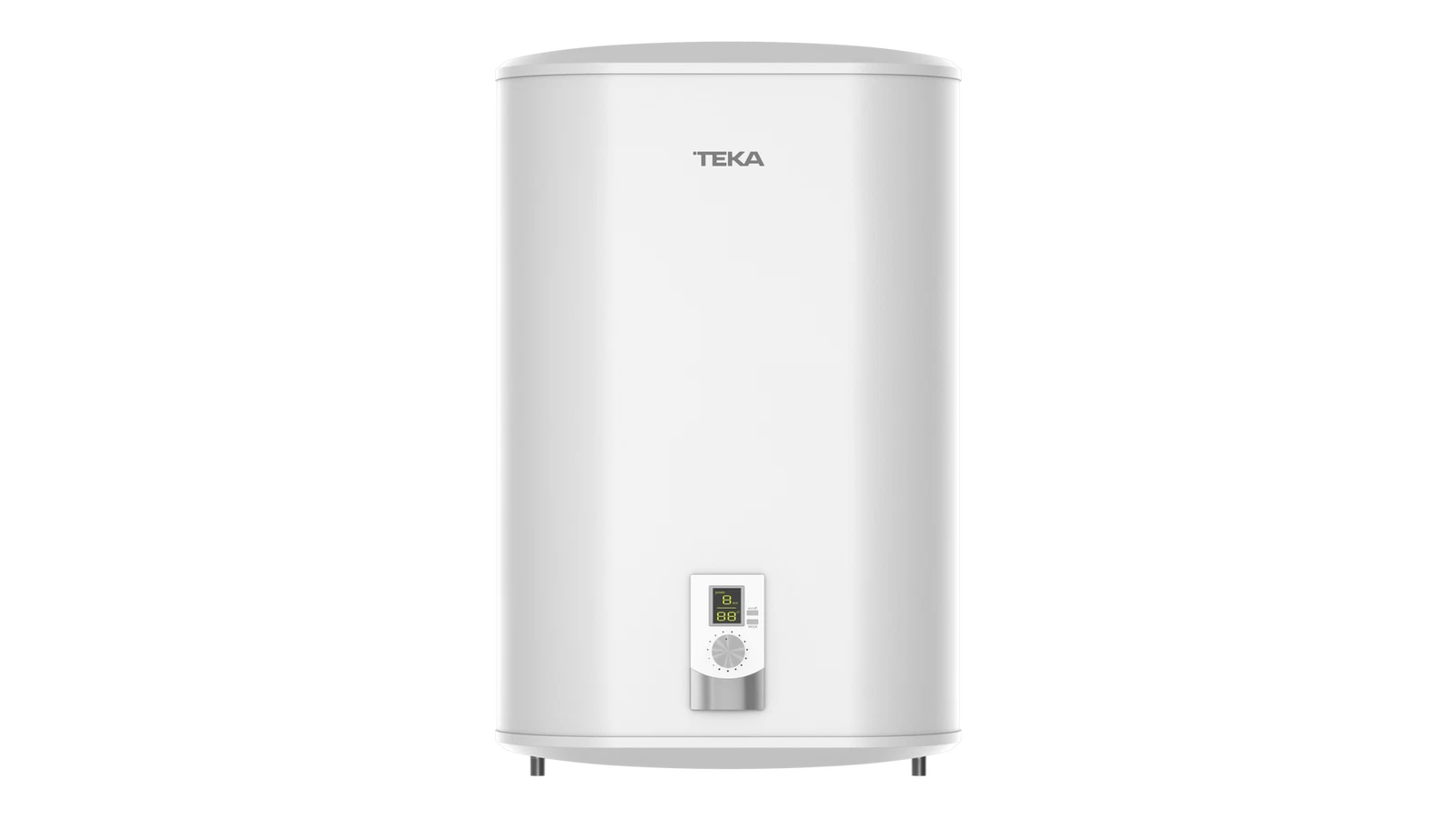

The Teka EWH 80 D Slim is a slim electric storage water heater built around two sapphire-enamelled steel tanks, which keeps the body only 300 mm deep while storing 74 litres. A ceramic element of 2,000 W can also run at 1,200 or 800 W, selected on the Smart Control card with digital display, and the thermostat covers 30 to 75 °C. The unit measures 900 x 570 x 300 mm, has an 18 mm insulation layer, a magnesium anode, IPX4 protection and dry-heating and overheat cut-outs.
Teka sizes it for two to four people (load profile M, about 1,720 kWh a year). It can be hung vertically or horizontally, which helps in kitchen units and lofts, but the wall must carry over 100 kg when full. The water pipes are G1/2 and the maximum inlet pressure is 0.75 MPa (7.5 bar): fit the supplied one-way safety valve on the cold inlet and a pressure reducer if the mains is higher. It needs a 230 V socket rated 10 A with earth, placed at least 1.8 m above the floor according to the manual; in hard-water areas (above 120 mg/l CaCO3) a softener is recommended.
Specifications come from Teka’s product page and user manual, which prevail if anything here differs. Teka Spain gives a 3-year product guarantee and up to 5 years on the tanks, in addition to the statutory guarantee.
| Brand | Teka |
|---|---|
| Model | EWH 80 D Slim |
| MPN / Manufacturer code | 42080090 |
| EAN / GTIN | 8421152156841 |
| Range / Series | EWH Slim |
| Finish / Colour | White |
| Heater type | Electric storage |
| Water supply type | Unvented (mains pressure) |
| Installation type | Wall-mounted, multi-position |
| Tank design | Flat, double tank |
| Material | Steel tanks with sapphire enamel (2 tanks) |
| Heating element type | Ceramic element |
| Thermostat / control type | Electronic with display |
| Capacity | 74 l |
| Power rating | 2.0 kW |
| Max water temperature | 75 °C |
| ErP energy class | B |
| ErP load profile | M |
| Annual energy consumption | 1720 kWh |
| Connection size | G 1/2" |
| Max water pressure | 7.5 bar |
| Voltage | 220-240 |
| Phase | Single phase |
| IP rating | IPX4 |
| Noise level | 15 dB |
| Height | 900 mm |
| Width | 570 mm |
| Depth | 300 mm |
| Weight | 32.84 kg |
| Included in box | One-way safety valve |
| Approvals | CE, CB |
| Guarantee | 3 years |
