Flat double-tank electric water heater, 80-litre class with 65 litres useful, 1.5 kW, for vertical or horizontal mounting. Electronic control with display, ErP class B, profile M; 5-year tank guarantee on top of 3 years.
€253.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

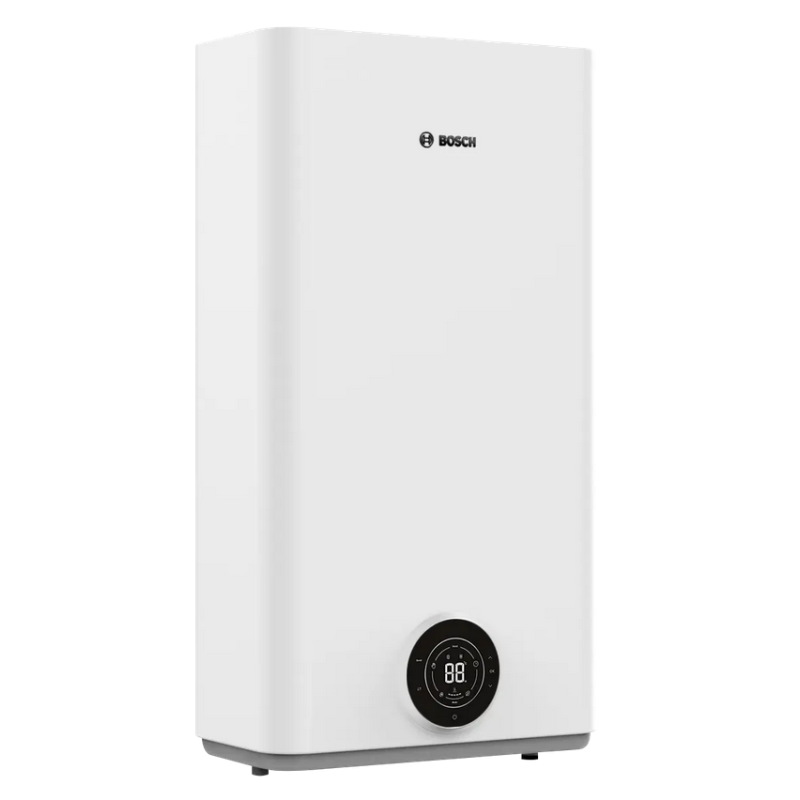

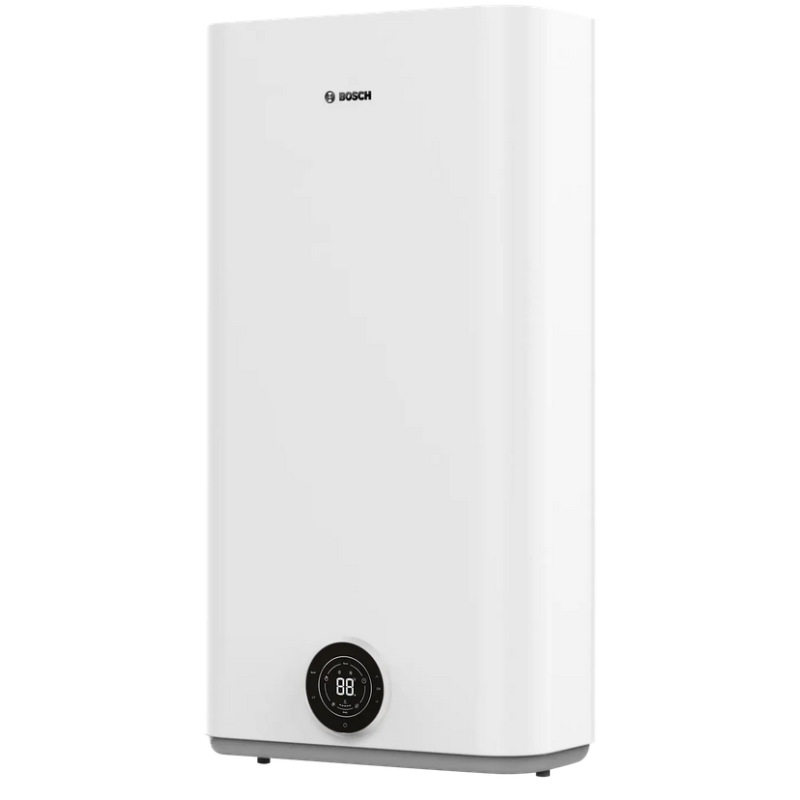

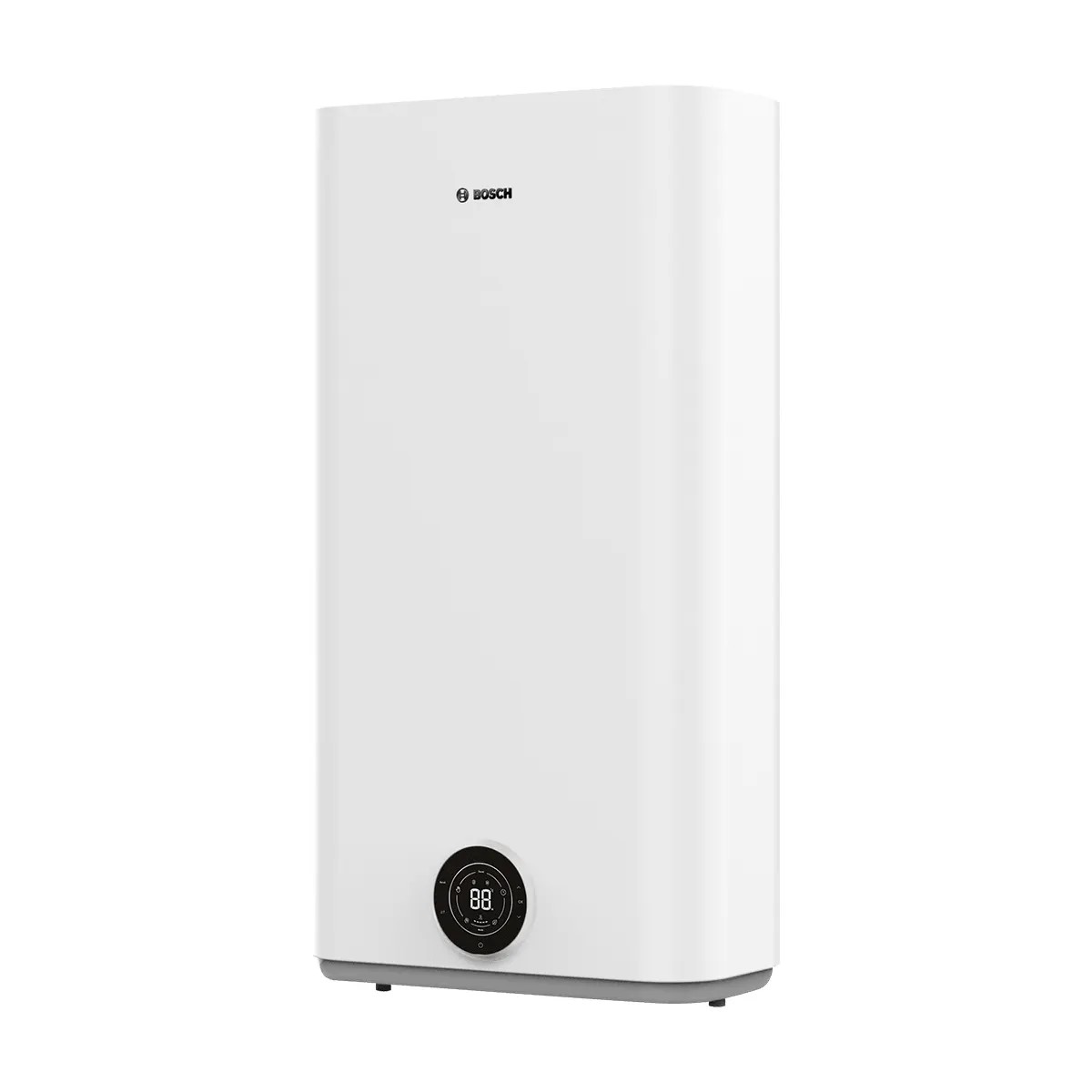

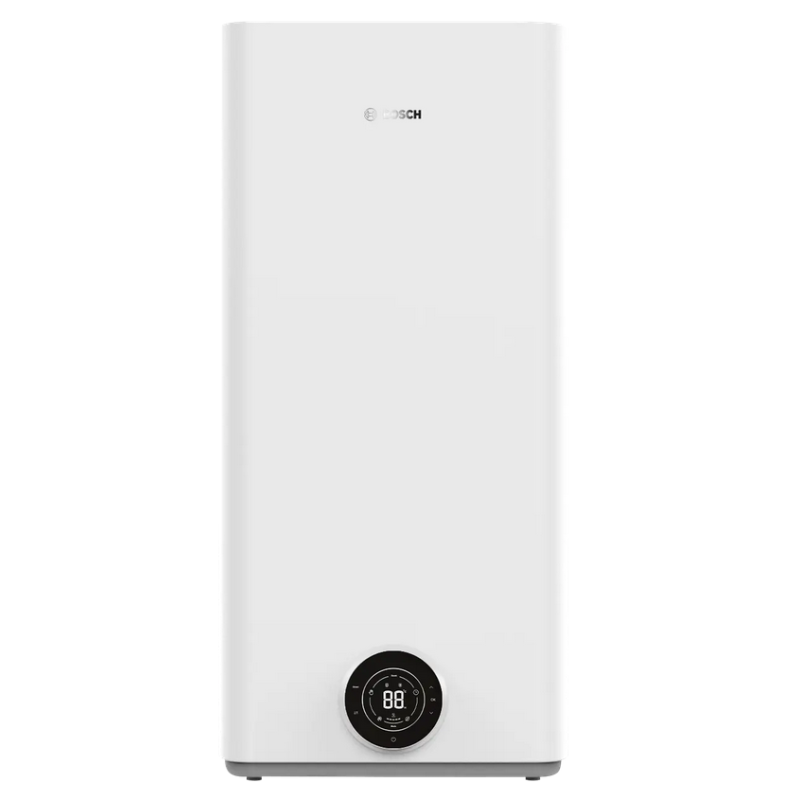

The Bosch Tronic 4501 T TR4501T 80 is a flat electric storage water heater with two internal tanks, sold in the 80-litre class with a useful capacity of 65 litres. A 1.5 kW element and an electronic control with front display adapt heating to use, and the body is only 316.5 mm deep (786.5 mm high, 569 mm wide), weighing 29.62 kg empty. Standby loss is 1.4 kWh a day and protection is IPX4.
Bosch rates it for load profile M (about 1,304 kWh a year), a good match for a one-bathroom home; a full heat-up from 10 to 60 °C takes around 4 hours 12 minutes. The reversible design hangs vertically or horizontally, useful above kitchen units or in false ceilings, but the wall must take roughly 95 kg when full. Water connections are 1/2″ and the maximum pressure is 8 bar, so a safety group and, where needed, a pressure reducer are required; the electrical supply is a single-phase circuit of about 6.5 A. Installation in Spain must follow the RITE and the low-voltage regulations.
Data comes from the Bosch Home Comfort technical data for TR4501T 80 DERB and the Tronic 4501 T datasheet, which prevail over this summary. Robert Bosch España covers the appliance for 3 years and adds a 5-year commercial guarantee against tank perforation for the 4501 range, in addition to the statutory guarantee.
| Brand | Bosch |
|---|---|
| Model | Tronic 4501 T TR4501T 80 DERB |
| MPN / Manufacturer code | 7736507268 |
| EAN / GTIN | 4062321875534 |
| Range / Series | Tronic 4501 T |
| Finish / Colour | White |
| Heater type | Electric storage |
| Water supply type | Unvented (mains pressure) |
| Installation type | Wall-mounted, multi-position |
| Tank design | Flat, double tank |
| Thermostat / control type | Electronic with display |
| Capacity | 65 l |
| Power rating | 1.5 kW |
| Heat-up time | 252 min (10 → 60 °C) |
| ErP energy class | B |
| ErP load profile | M |
| Annual energy consumption | 1304 kWh |
| Connection size | 1/2" |
| Max water pressure | 8 bar |
| IP rating | IPX4 |
| Noise level | 15 dB |
| Height | 786.5 mm |
| Width | 569 mm |
| Depth | 316.5 mm |
| Weight | 29.62 kg |
| Guarantee | 3 years |
