7-litre unvented undersink water heater with a 2.2 kW element, delivering mains-pressure hot water to a nearby basin or sink. Rated 6 bar with pressure relief valve; ErP class B, profile XXS.
€218.99
In stock
Order today and receive it on October 27 - November 2 in Spain, or on November 2-4 in the EU and the United Kingdom.
Secure payment with Visa, Mastercard and American Express. Prices include VAT.
Spain 2–7 business days, rest of the European Union and the United Kingdom 6–8. Orders confirmed on a business day before 14:00 are prepared the same day. See Shipping and Payment Methods.
Free when the product is faulty, arrives damaged or does not match the order. If you simply change your mind, the return costs £34.90 from the United Kingdom and €24.90 from Ireland and the rest of the European Union, and is free within Spain; the product must not have been installed or used. See Returns, Exchanges and Warranty.
Every product is new and sealed. 3-year legal guarantee; the manufacturer’s commercial warranty applies in addition where it exists. Customer support in Spanish and English, Monday to Friday.

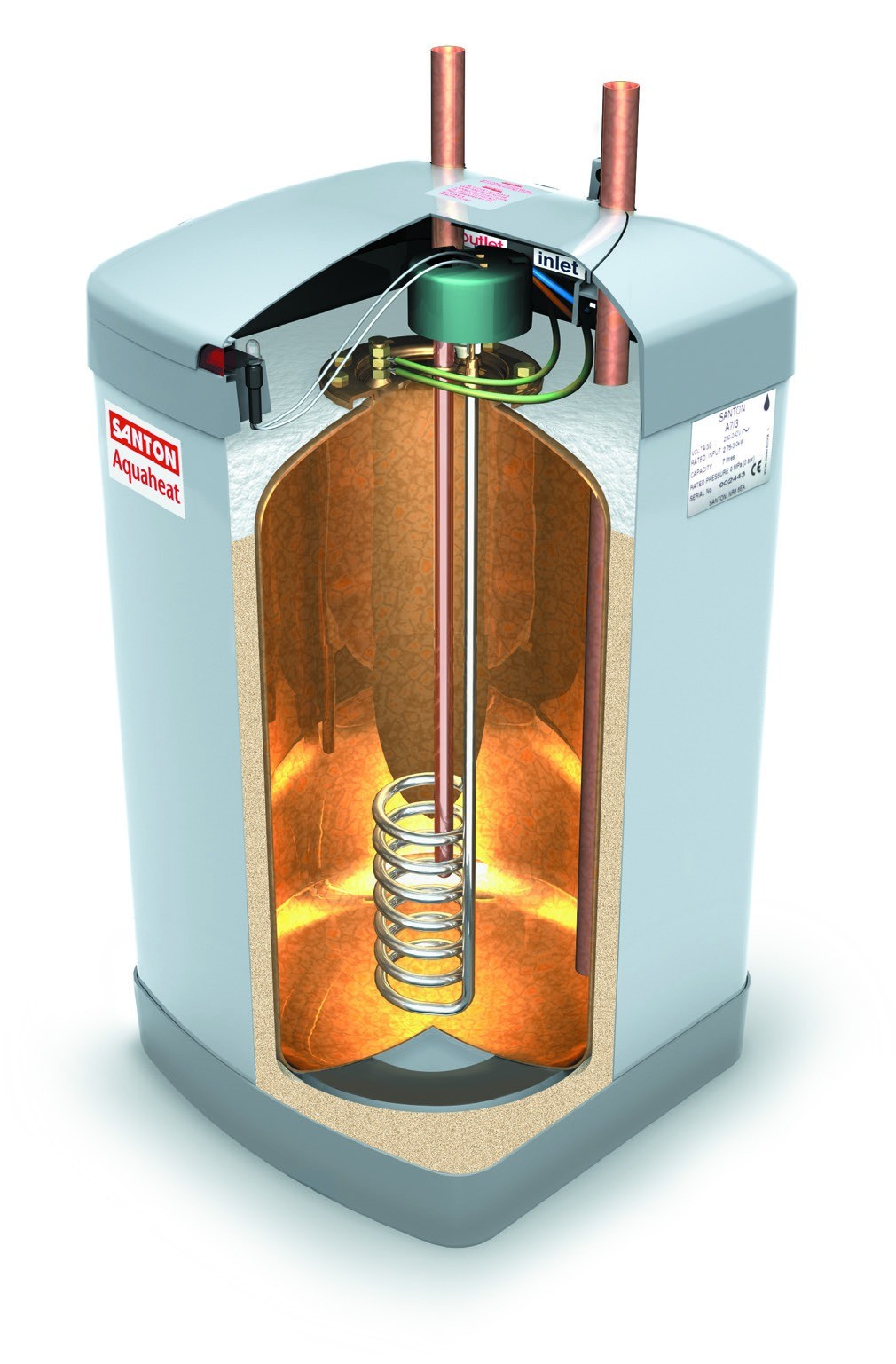

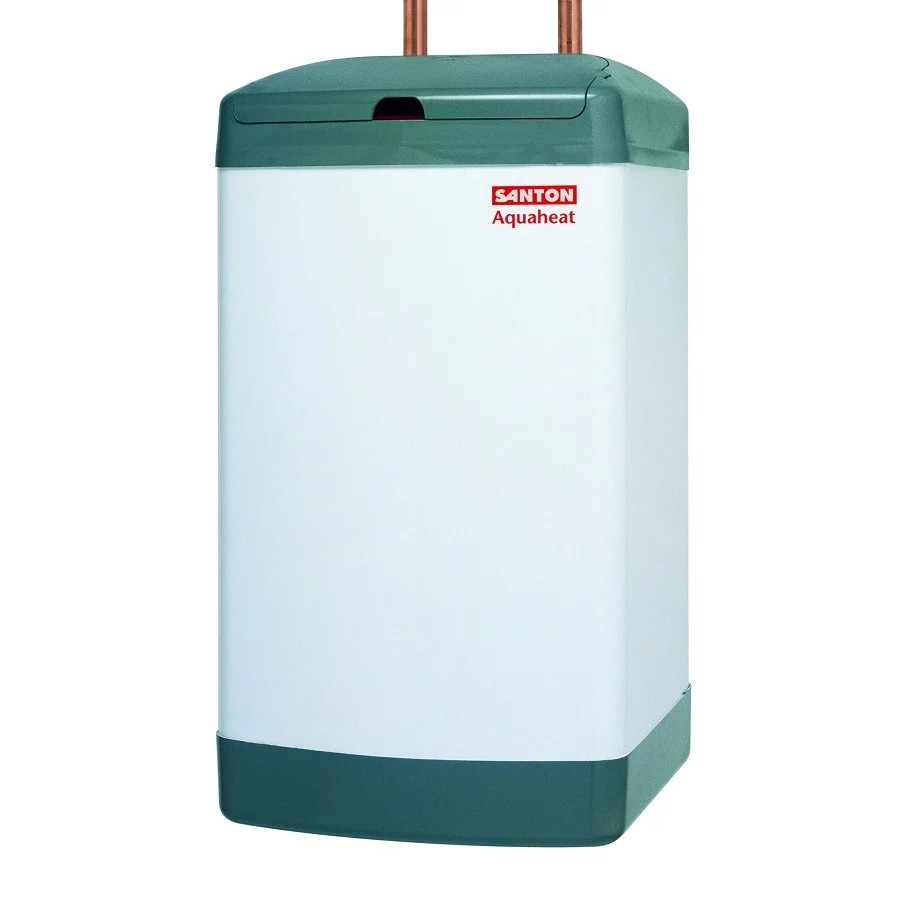

The Santon Aquaheat AH7 is a compact unvented storage water heater holding 7 litres, designed to sit under a basin or sink with its pipe connections on top. Its element is rated 2.2 kW at 240 V (2.0 kW at 230 V); the container is rated at 0.6 MPa (6 bar) and protected by a 6 bar pressure relief valve. The unit is 356 mm high, 240 mm wide and 240 mm deep and weighs 4.9 kg empty and 11.9 kg full; it comes with a 0.75 m three-core cable fitted.
Because it is unvented it supplies a normal mixer tap at mains pressure, which suits cloakrooms, offices and kitchens far from the main cylinder. The minimum inlet pressure is 0.8 bar; below 15 litres no expansion vessel is required when the static supply stays under 4.1 bar, but above that a pressure-reducing valve must be fitted (Santon’s instructions show both layouts). Inlet and outlet are 15 mm copper for compression fittings, and the relief valve discharge must run continuously downwards to a tundish and a safe point. Supply it through a double-pole isolating switch with 3 mm contact separation.
Specifications come from the Santon Aquaheat installation and user instructions published by Heatrae Sadia, which prevail if anything differs. The Santon warranty card gives 2 years, in addition to statutory rights.
| Brand | Santon |
|---|---|
| Model | Aquaheat AH7/2.2 7 L |
| MPN / Manufacturer code | 94050001 |
| EAN / GTIN | 5018780600186 |
| Range / Series | Aquaheat |
| Finish / Colour | White / grey |
| Heater type | Electric storage |
| Water supply type | Unvented (mains pressure) |
| Installation type | Undersink |
| Capacity | 7 l |
| Power rating | 2.2 kW (2.0 kW at 230 V) |
| ErP energy class | B |
| ErP load profile | XXS |
| Annual energy consumption | 549 kWh |
| Connection size | 15 mm copper tails (compression) |
| Min water pressure | 0.8 bar |
| Max water pressure | 6 bar |
| Voltage | 230/240 |
| Phase | Single phase |
| Height | 356 mm |
| Width | 240 mm |
| Depth | 240 mm |
| Weight | 4.9 kg |
| Included in box | 0.75 m 3-core flexible cable (fitted) |
| Guarantee | 2 years |
